Home  >  JARD  >  JARD Motors  >  JARD Direct Drive  > 1/2HP 208/230V 1075RPM 3SP REV

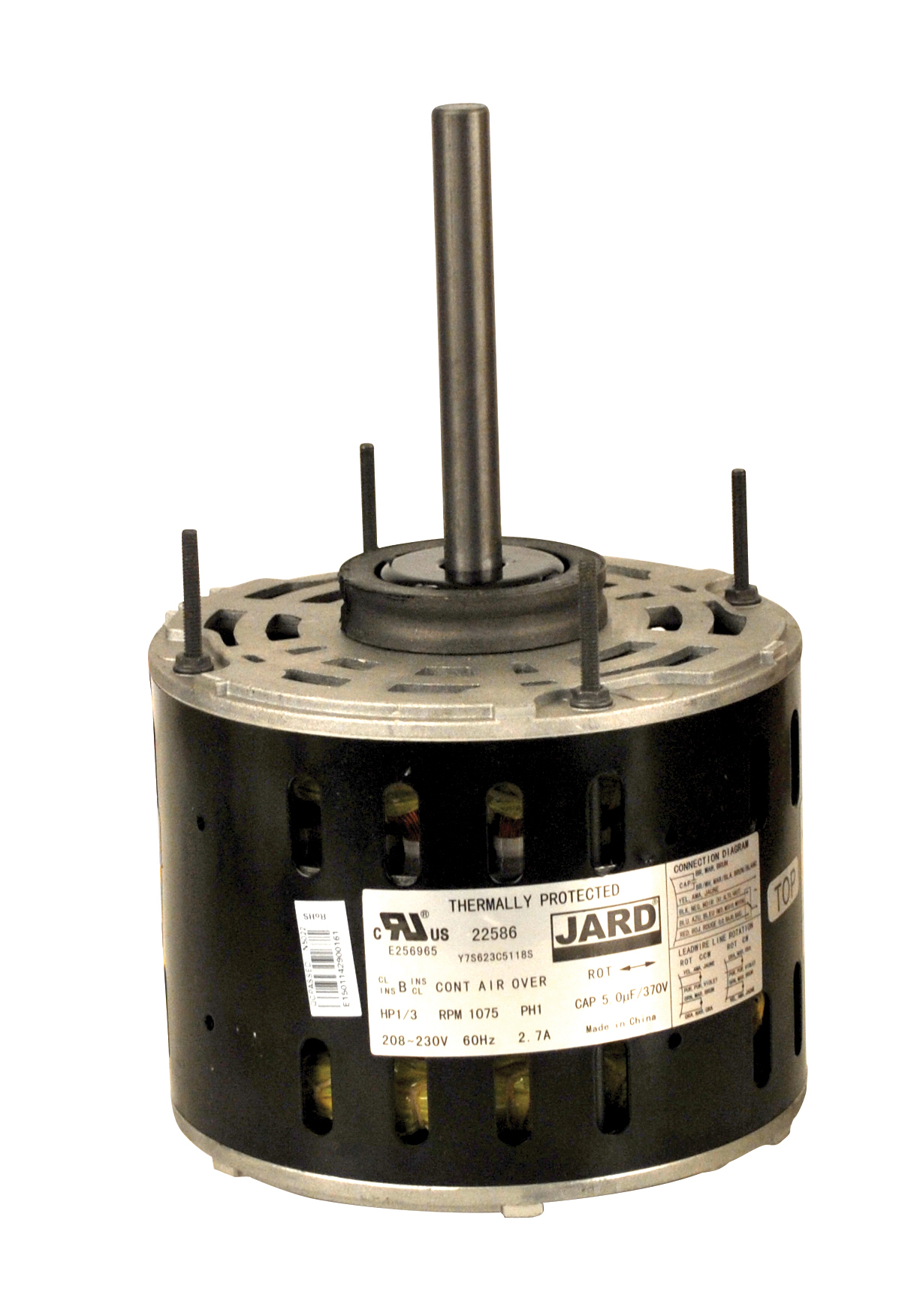

1/2HP 208/230V 1075RPM 3SP REV

No. of Poles 6 Motor Type PSC Enclosure OAO HP (Max.) 1/2 Voltage 208-230 Mounting Belly Band, Resilient Ring Speeds 3 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards CUL FLA 3.2 Bearing Ball Lead Length (in.) 32 Thermal Protection Auto Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 4.5 Capacitor Rating 7.5/370 Service Factor 1.0 Duty Continuous
Item #: 22588
1/2HP 208/230V 1075

JARD Direct Drive Blower Motors

  • Rheem mounting holes
  • Extended thru bolts shaft end
  • 3 Speed, Single Phase
  • Sleeve Bearing
  • Capacitor required: 7.5 MFD 370V
  • (2)2-1/4 & (2)2-1/2 Resilient Rings
  • Thermal protected, air over
  • 30 in. Leads

    • Motors

    No. of Poles
    6
    Motor Type
    PSC
    Enclosure
    OAO
    HP (Max.)
    1/2
    Voltage
    208-230
    Mounting
    Belly Band, Resilient Ring
    Speeds
    3
    Hz
    60
    Rotation
    REV
    RPM Range
    1075
    NEMA Frame Size
    48
    Phase
    Single
    Standards
    CUL
    FLA
    3.2
    Bearing
    Ball
    Lead Length (in.)
    32
    Thermal Protection
    Auto
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    4.5
    Capacitor Rating
    7.5/370
    Service Factor
    1.0
    Duty
    Continuous
    MFG NameMFG #
    Carrier/TotalineP257-8588
    Century/AO SmithD1056
    EconomasterEM3588
    FascoD703
    GE/Genteq3588
    Magnetek0528
    MarathonX005
    Nordyne/ Partners Choice01-0175
    Packard43588
    Rheem/ProtechW51-12BJA3-01
    ROTOMDD-3588
    Smart ElectricSE3588
    US Motors/Emerson1973
    WagnerWG840588
    York/Source 6S1-FHM3588

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

    ©MOTORS & ARMATURES, INC.
    MFG NameMFG #
    MARS10588
    MARS Azure10865

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
