Home  >  Motors  >  Refrigeration  >  ECM  > 6-12W DBL DTY UNITRNX 90 DEGPL

6-12W DBL DTY UNITRNX 90 DEGPL

Motor Type ECM Enclosure TEAO HP (Max.) 6-12 Watt Voltage 115 Mounting Pad/Bracket Speeds 1 Hz 60 Rotation CW RPM Range 1550 NEMA Frame Size 51 Phase Single Standards UL/CUL FLA 0.2-0.3 Bearing Sleeve Lead Length (in.) 15 Thermal Protection Yes Ambient Deg C 40 Ins. Class A Shaft Dia. (in.) 1/4 Capacitor Included No Shaft Length (in.) 0.50
Item #: 00622
6-12W DBL DTY UNITR

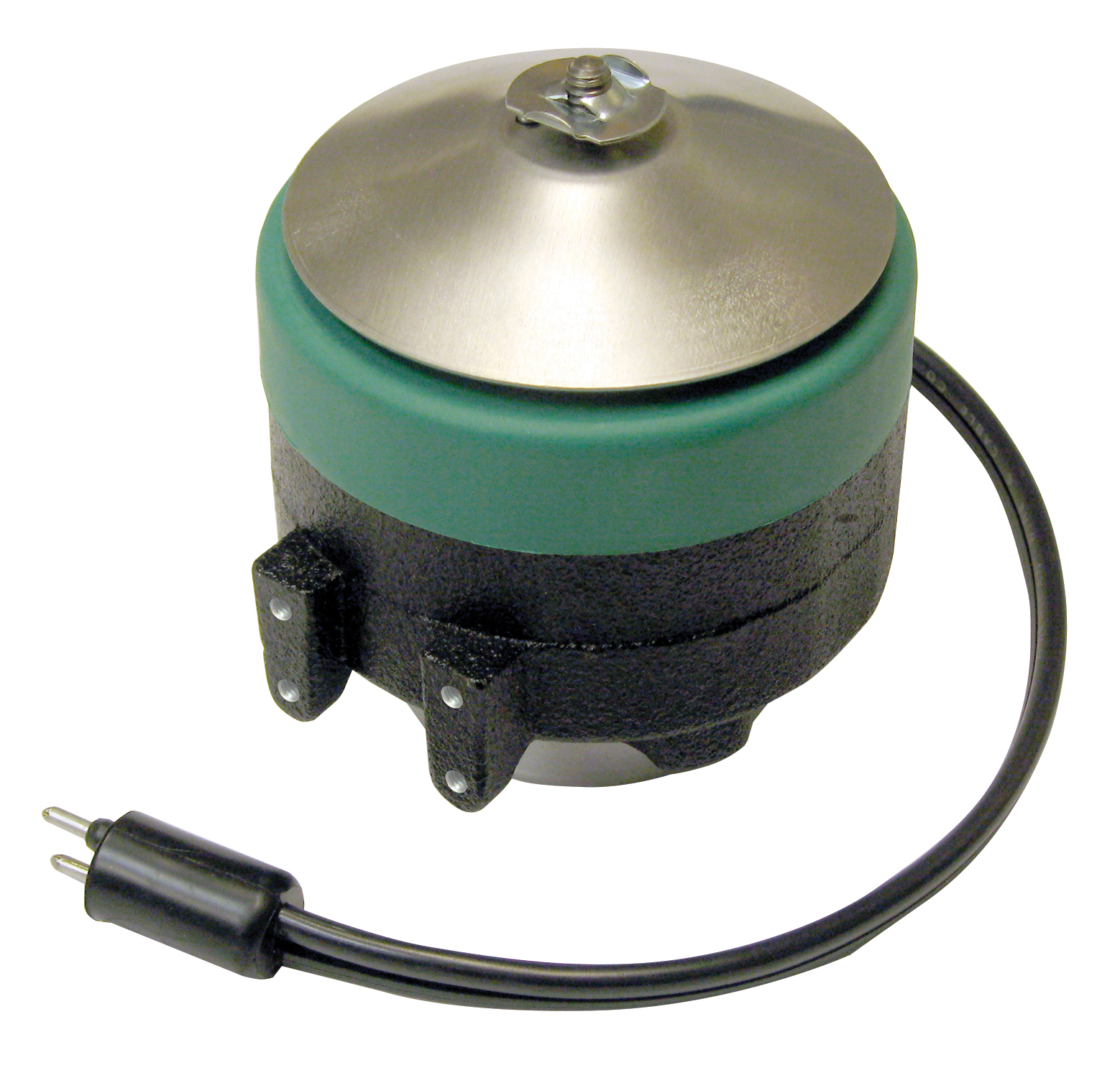

Evaporator/Condenser ECM Unit Bearing Motor

  • High capacity oil reservoir spiral grooved shaft for efficient distribution of oil to the bearing surface
  • Mounting hardware included
  • Water shield included
  • EMF P-2-1A Lyall power plug

Motors

Motor Type
ECM
Enclosure
TEAO
HP (Max.)
6-12 Watt
Voltage
115
Mounting
Pad/Bracket
Speeds
1
Hz
60
Rotation
CW
RPM Range
1550
NEMA Frame Size
51
Phase
Single
Standards
UL/CUL
FLA
0.2-0.3
Bearing
Sleeve
Lead Length (in.)
15
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
A
Shaft Dia. (in.)
1/4
Capacitor Included
No
Shaft Length (in.)
0.50
