Home
>
HVAC/R Components
>
Fan Blades
>
Single Piece Aluminum
> 12.0 DIA 23 DEG CW 5/16 BORE
12.0 DIA 23 DEG CW 5/16 BORE
Diameter (in.)
12
Type
Condenser Fan Fixed Hub
No. of Blades
5
Bore Diameter (in.)
5/16
Pitch (Degree)
23
Rotation
CW
Material
Aluminum
Max. RPM
1725
Depth (in.)
2 3/16
CFM @ 0.000-In. SP
0.06
Min. HP @ 0.000-In. SP
922
CFM @ 0.300-In. SP
829
Item #:
07521

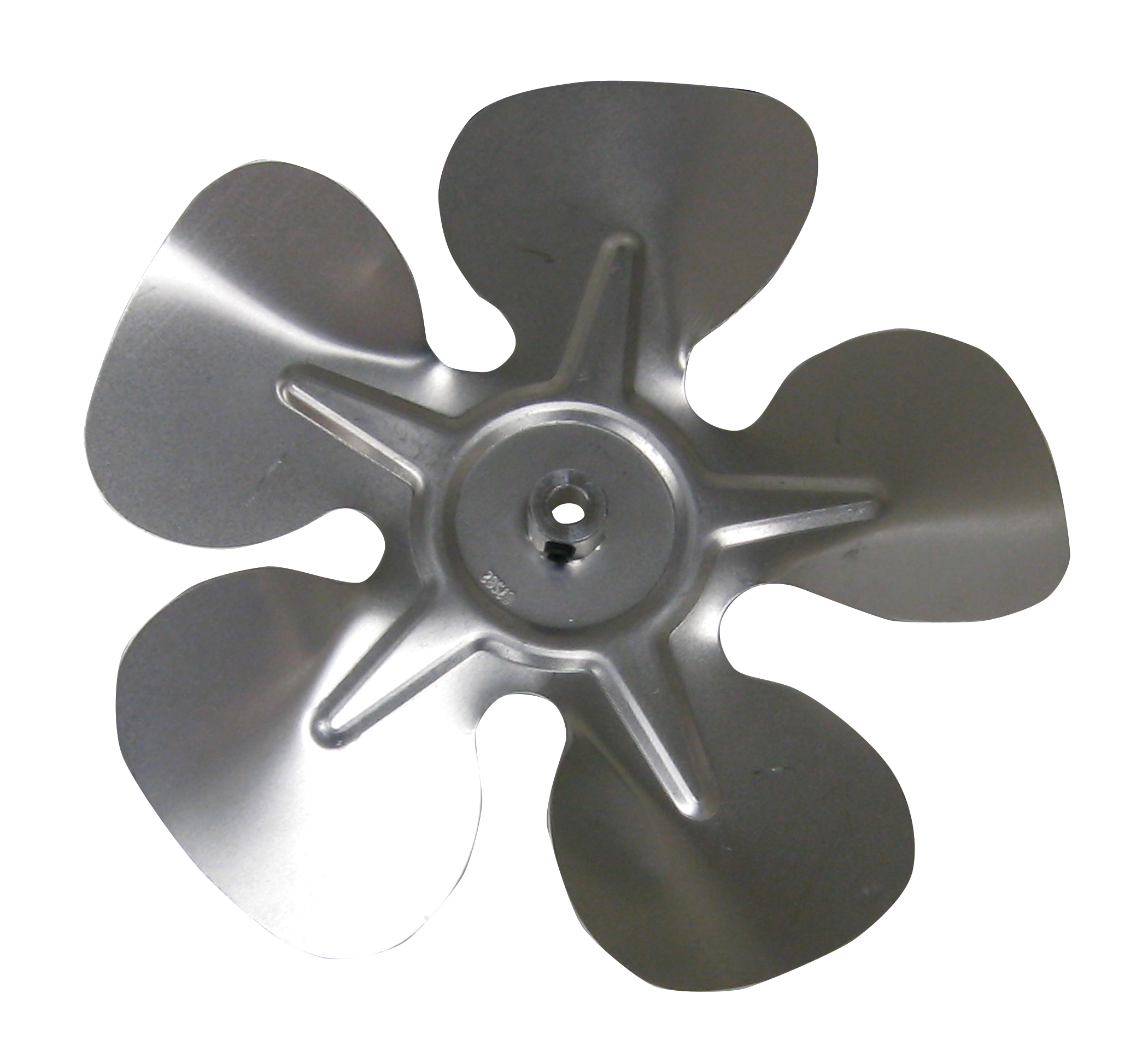

Single Piece Aluminum Fan Blade
- Low noise & energy efficient operation
- For Unit Bearing Motors
Fan Blades
Diameter (in.)
12
Type
Condenser Fan Fixed Hub
No. of Blades
5
Bore Diameter (in.)
5/16
Pitch (Degree)
23
Rotation
CW
Material
Aluminum
Max. RPM
1725
Depth (in.)
2 3/16
CFM @ 0.000-In. SP
0.06
Min. HP @ 0.000-In. SP
922
CFM @ 0.300-In. SP
829
