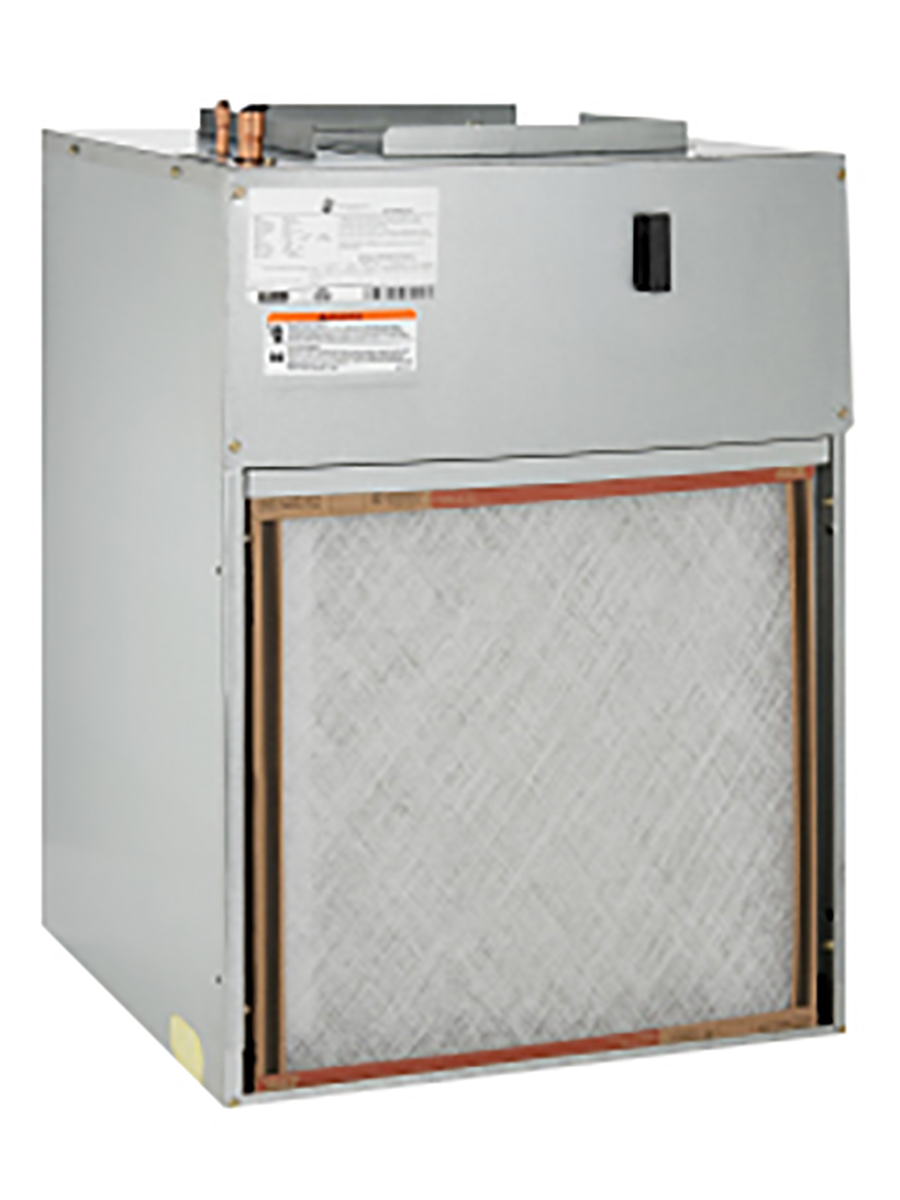

BCW1E3607NA4X WALL MT AH
CT 3T 7KW 208/230-1 TXV
Coil Type
Fin & Tube
Motor Type
ECM
Heating Source
Factory installed electric heat
Refrigerant
R-410A
Voltage
208/240V/1/60
Application
Upflow
Width (in.)
22
Blower Drive (Tons)
3
Metering Device
TXV
Electric Heat BTUH
25,598
Warranty
See Warranty Document
Circuit Breaker
45
Depth (in.)
18.75
Min. Circuit Ampacity
41.6
Cabinet
Heavy-gauge Galvanized Steel
Liquid Line Connection (in.)
3/8
Shipping Wt (lbs)
81
Height (in.)
29.75
Suction Line Connection (in.)
3/4
Test Listing
ETL US and Canada
NOTE
Wall mount requires hanging brackets
Certification
AHRI
Blower Amps
2.0
Filter Size
20x20
Item #:
1.901203
Wall Mount Air Handler
- Patent pending flexible copper tubing
- Low 30" height on all models
- Refrigerant connections located on top left
- 4 Screw removal for easy access to all electrical connections
- Dual condensate drain connection on left side right side and bottom of cabinet
- Air filter included
- Approved for installation in manufactured housing, factory installed TXV
Wall Mount
Coil Type
Fin & Tube
Motor Type
ECM
Heating Source
Factory installed electric heat
Refrigerant
R-410A
Voltage
208/240V/1/60
Application
Upflow
Width (in.)
22
Blower Drive (Tons)
3
Metering Device
TXV
Electric Heat BTUH
25,598
Warranty
See Warranty Document
Circuit Breaker
45
Depth (in.)
18.75
Min. Circuit Ampacity
41.6
Cabinet
Heavy-gauge Galvanized Steel
Liquid Line Connection (in.)
3/8
Shipping Wt (lbs)
81
Height (in.)
29.75
Suction Line Connection (in.)
3/4
Test Listing
ETL US and Canada
NOTE
Wall mount requires hanging brackets
Certification
AHRI
Blower Amps
2.0
Filter Size
20x20
