Home  >  Motors  >  HVAC  >  Direct Drive  > 1/6-1/2 MULTI-HP 115V

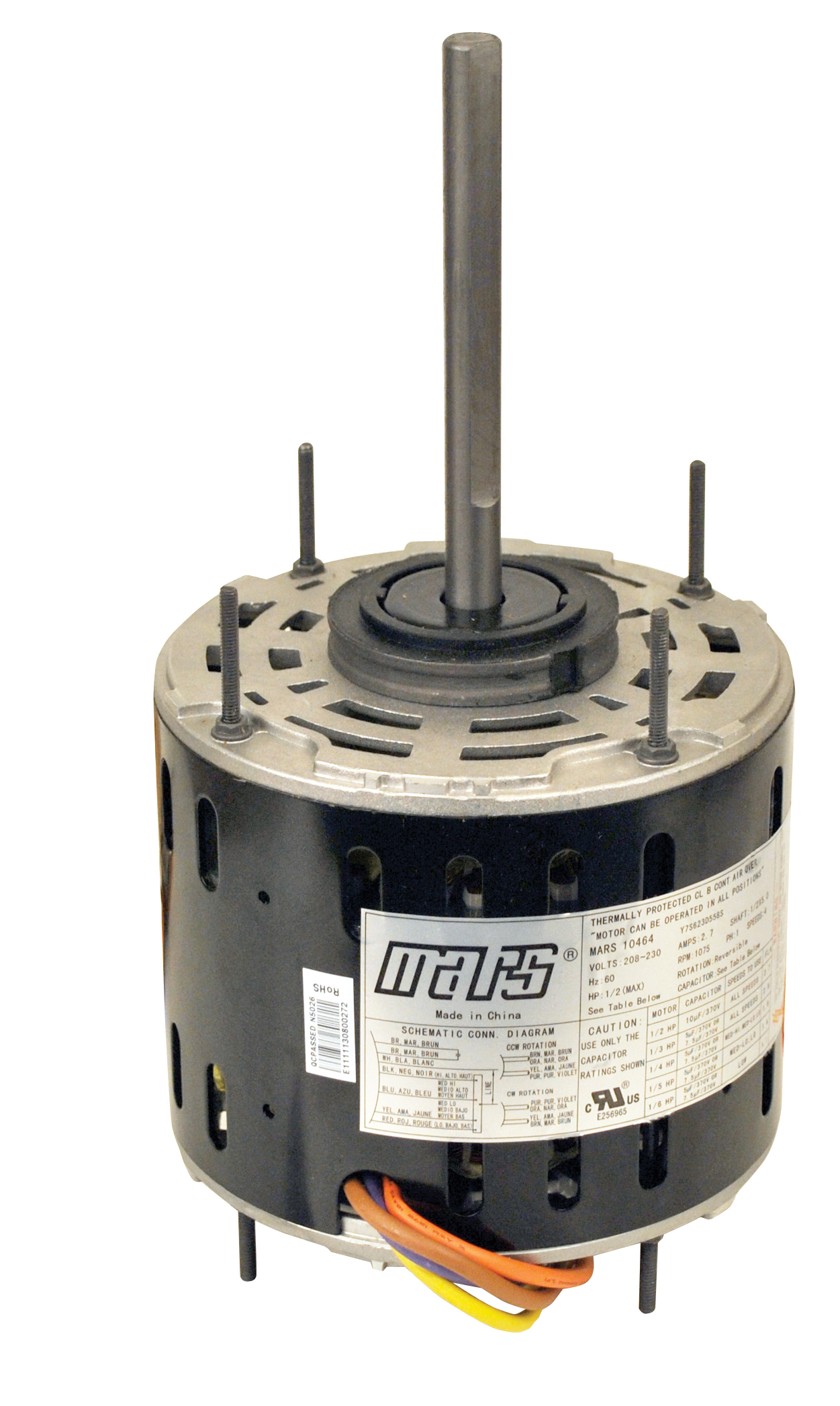

1/6-1/2 MULTI-HP 115V

Motor Type PSC Enclosure OAO H.P. (Max.) 1/2 Voltage 115 Multi-Rated H.P. 1/6-1/2 Speeds 4 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards CUL FLA 6.2 Mount All Angle Bearing Sleeve Shaft Length Inches 5.5 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 40 Ins. Class Class B Capacitor Included No Capacitor Rating 15/7.5/5/370
Item #: 10463
10463

Motors

Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/2
Voltage
115
Multi-Rated H.P.
1/6-1/2
Speeds
4
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
6.2
Mount
All Angle
Bearing
Sleeve
Shaft Length Inches
5.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
15/7.5/5/370
MFG NameMFG #
Century/A.O. SmithFDL6001
US Motors/Emerson5460
FascoD2835
Genteq/Regal3463
MarathonX077
Nordyne/Partners Choice01-0698
Rheem/Ruud Protech51-23012-41
Carrier/Totaline RCDP257-E5460
Diversitech/WagnerWG840463
York/Source 2S1-FHM3463
ROTOMR43600

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
MFG NameMFG #
JARD22463

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
