Home
>
Motors
>
HVAC
>
Direct Drive
> 1/8-1/3 208-230V 825 D/D MTR

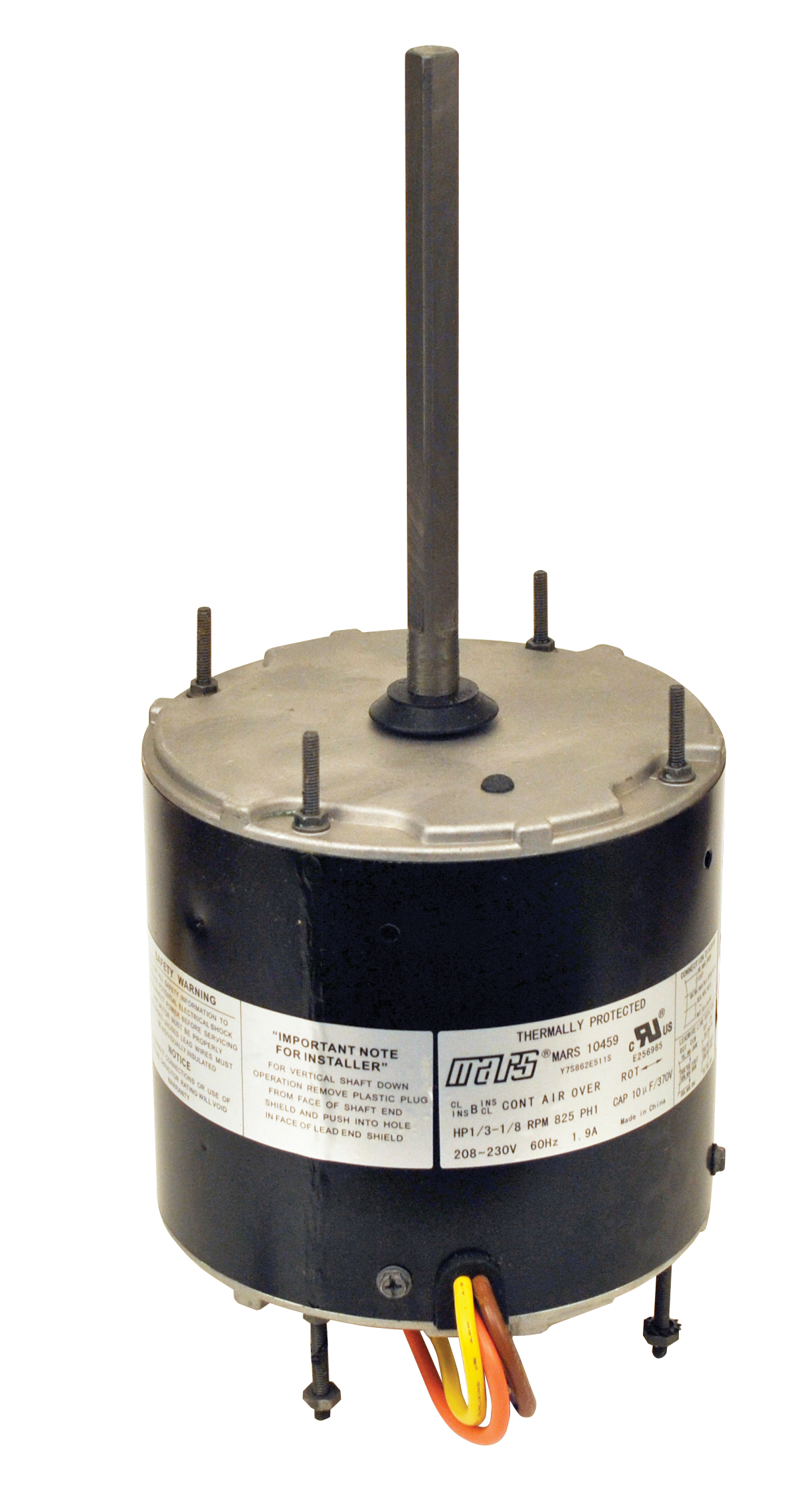

1/8-1/3 208-230V 825 D/D MTR
Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/3
Voltage
208-230
Multi-Rated H.P.
1/8-1/3
Speeds
4
Hz
60
Rotation
REV
RPM Range
825
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
2.4
Mount
Thru Bolt/All Angle
Bearing
Sleeve
Shaft Length Inches
4.53
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
7.5/370
Item #:
10479
Motors
Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/3
Voltage
208-230
Multi-Rated H.P.
1/8-1/3
Speeds
4
Hz
60
Rotation
REV
RPM Range
825
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
2.4
Mount
Thru Bolt/All Angle
Bearing
Sleeve
Shaft Length Inches
4.53
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
7.5/370
| MFG Name | MFG # |
| Century/AO Smith | ORM1008V1 |
| US Motors/Emerson | 5469 |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
