Home  >  Motors  >  OEM Replacement  >  More OEM Replacements  > 1/3HP 850RPM 575/1/60 CF

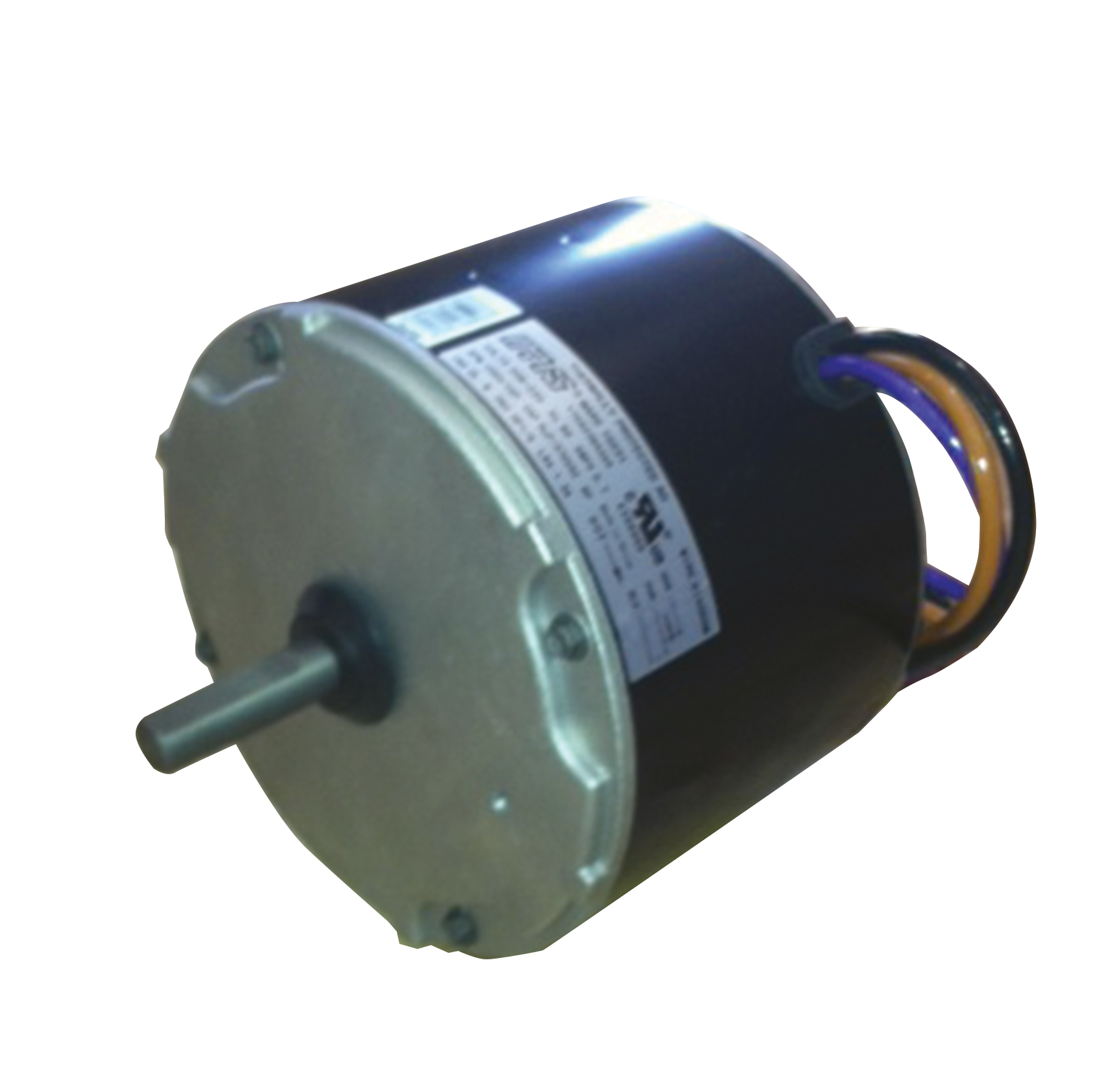

1/3HP 850RPM 575/1/60 CF

No. of Poles 8 Motor Type PSC Enclosure OAO HP (Max.) 1/3 Voltage 575 Mounting Band Speeds 1 Hz 60 Rotation CW-LE RPM Range 850 NEMA Frame Size 48 Phase Single Standards UL FLA 0.66 Bearing Ball Thermal Protection Auto Ambient Deg C -10C-+40C Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 2.56 Capacitor Rating 5/370 Replaces S1-02434550003 Duty Continuous
Item #: 10570
1/3HP 850RPM 575/1/

OEM Direct Replacement Motor

  • For use with Coleman & Encon Equipment
  • 5.6" Diameter - 48 Frame
  • Capacitor Required 5 Mfd-370 V
  • Totally Enclosed Air Over
  • Ball Bearing

    • Motors

    No. of Poles
    8
    Motor Type
    PSC
    Enclosure
    OAO
    HP (Max.)
    1/3
    Voltage
    575
    Mounting
    Band
    Speeds
    1
    Hz
    60
    Rotation
    CW-LE
    RPM Range
    850
    NEMA Frame Size
    48
    Phase
    Single
    Standards
    UL
    FLA
    0.66
    Bearing
    Ball
    Thermal Protection
    Auto
    Ambient Deg C
    -10C-+40C
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    2.56
    Capacitor Rating
    5/370
    Replaces
    S1-02434550003
    Duty
    Continuous
    MFG NameMFG #
    York/Source 1S1-02434550003

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
