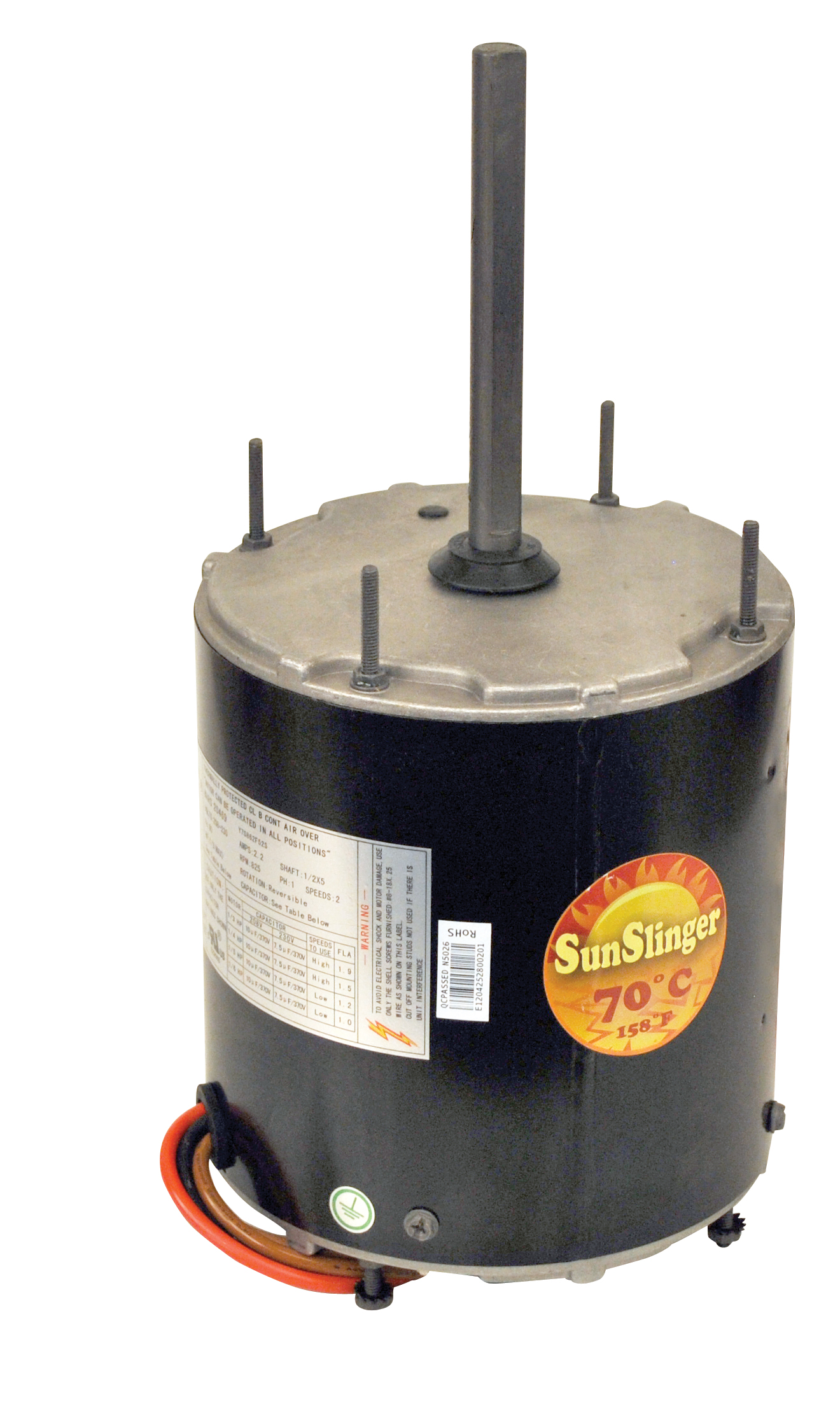

1/5-1/2 MULTI HP 70C CF MTR
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
208-230
Multi-Rated H.P.
1/5-1/2
Speeds
2
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
3.6
Mount
All Angle
Bearing
Ball
Shaft Length Inches
5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
70
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
10/12.5/370
Item #:
20468
Motors
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
208-230
Multi-Rated H.P.
1/5-1/2
Speeds
2
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
3.6
Mount
All Angle
Bearing
Ball
Shaft Length Inches
5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
70
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
10/12.5/370
| MFG Name | MFG # |
| Century/AO Smith | ORM5459BF |
| Economaster | 3468HS |
| GE/Genteq | 3468HS |
| US Motors/Emerson | 5465H |
| Wagner/Diversitech | WG840468HT |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
