Home  >  JARD  >  JARD Motors  >  JARD Condenser Fan  > 1/6HP 208-230V 825RPM COND MTR

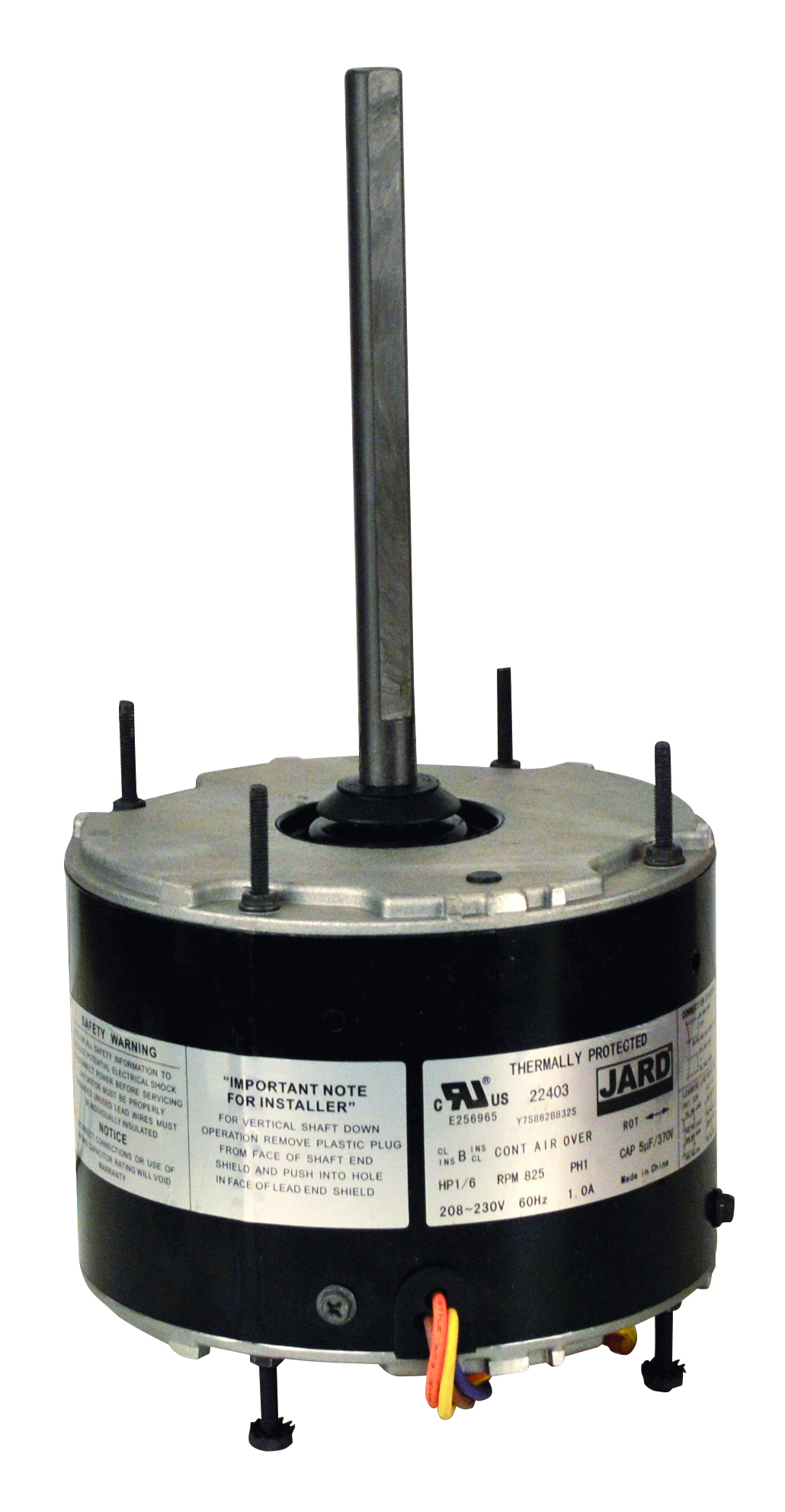

1/6HP 208-230V 825RPM COND MTR

Motor Type PSC Enclosure TEAO H.P. (Max.) 1/6 Voltage 208-230 Speeds 1 Hz 60 Rotation REV RPM Range 825 NEMA Frame Size 48 Phase Single Standards CUL FLA 1 Mount All Angle Bearing Sleeve Shaft Length Inches 6.5 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 60 Ins. Class Class B Capacitor Included No Capacitor Rating 5/370
Item #: 22403
22403

Motors

Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/6
Voltage
208-230
Speeds
1
Hz
60
Rotation
REV
RPM Range
825
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
1
Mount
All Angle
Bearing
Sleeve
Shaft Length Inches
6.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
5/370
MFG NameMFG #
Carrier/TotalineP257-8583
Century/AO SmithDL1026
EconomasterEM3583
FascoD721
GE/Genteq3583
Magnetek0533
MarathonX000
Nordyne/ Partners Choice01-0169
Packard43583
Rheem/ProtechW51-14BAA3-01
ROTOMDD-3583
Smart ElectricSE3583
US Motors/Emerson1863
WagnerWG840583
York/Source 1S1-FHM3583

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
MFG NameMFG #
MARS10403

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
