Home  >  JARD  >  JARD Motors  >  JARD Condenser Fan  > 1/6HP 208-230V 1075RPM COND MT

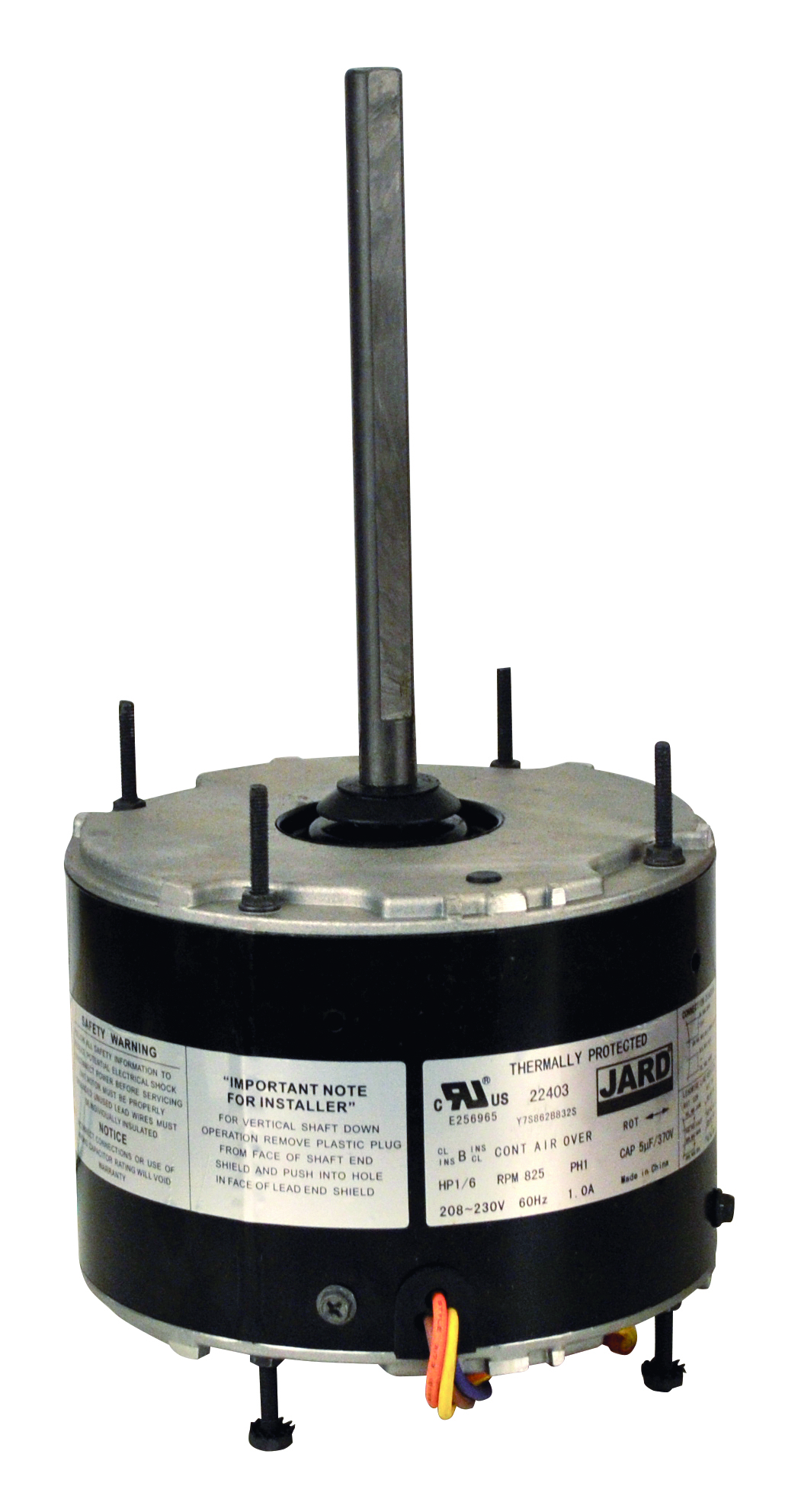

1/6HP 208-230V 1075RPM COND MT

Motor Type PSC Enclosure TEAO H.P. (Max.) 1/6 Voltage 208-230 Speeds 1 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards CUL FLA 0.9 Mount All Angle Bearing Sleeve Shaft Length Inches 6.5 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 60 Ins. Class Class B Capacitor Included No Capacitor Rating 5/370
Item #: 22727
22727

Motors

Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/6
Voltage
208-230
Speeds
1
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
0.9
Mount
All Angle
Bearing
Sleeve
Shaft Length Inches
6.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
5/370
MFG NameMFG #
EconomasterEM3727
Smart ElectricSE3727
Wagner/DiversitechWG840727
Packard43727
US Motors/Emerson1859

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
