Home  >  HVAC/R Components  >  Fan Centers  > SPNO/SPNC FAN CENTER

SPNO/SPNC FAN CENTER

Transformer Primary Voltage 120V Transformer Secondary Voltage 24V Relay Type SPNO/SPNC Primary Connection Color coded leads - pre stripped 120V FLA Rating 13.8 Secondary Connection Terminal board with 5 screw terminals VA Rating 40 120V LRA Rating 82.8 208-240V FLA Rating 6.9 208-240V LRA Rating 41.4 HP Rating 0.75
Item #: 24012
SPNO/SPNC FAN CENTE

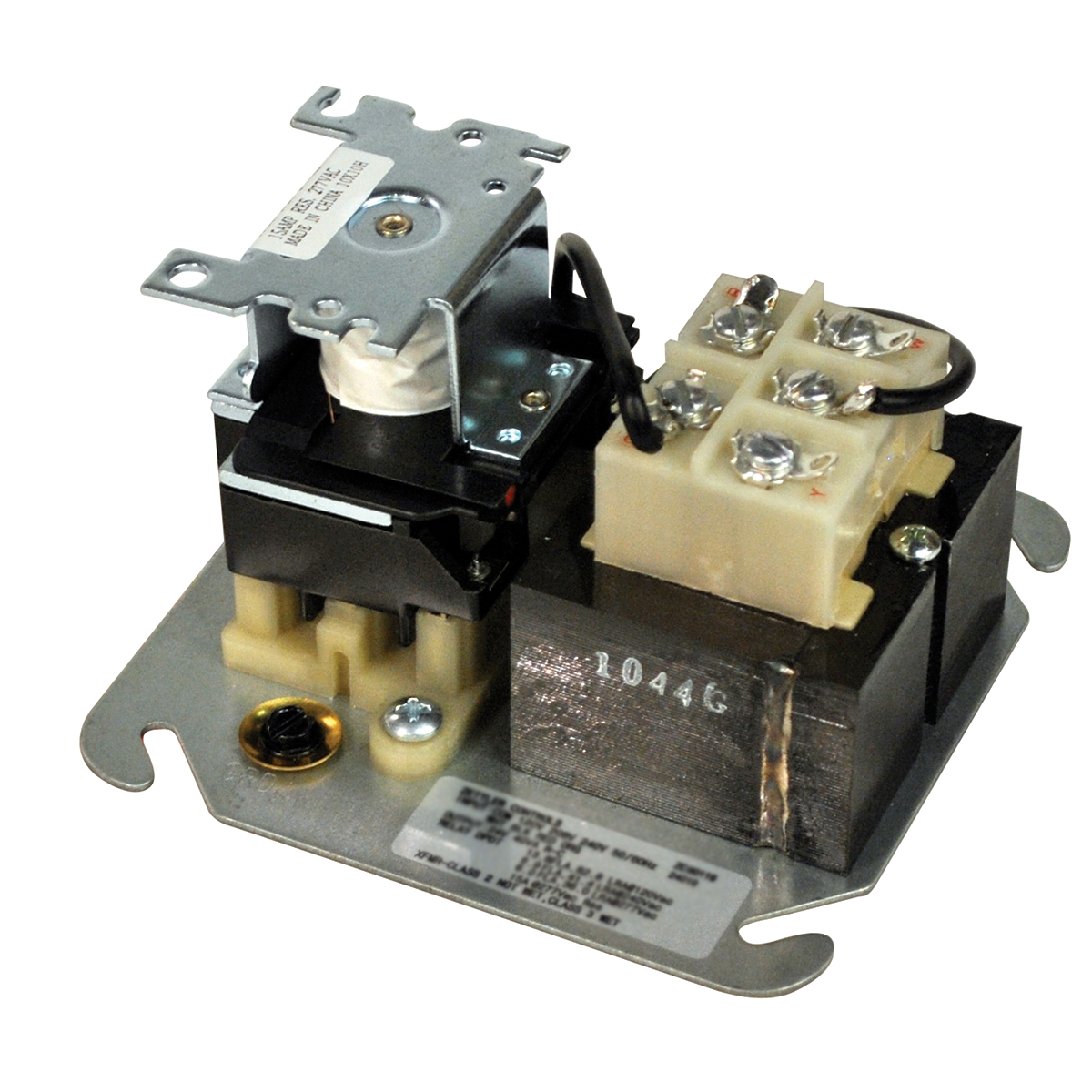

MARS Fan Control Centers

  • Provides convenient low voltage control of one and two speed fan motors and auxiliary circuits in heating, cooling, or heating/cooling applications
  • Reliable, compact unit consisting of a 24 volt control transformer and a plug-in switching relay mounted on a 4" square electrical junction box cover
  • UL 1585 40VA transformer
  • Color coded leads
  • Low voltage terminal board

Fan Centers

Transformer Primary Voltage
120V
Transformer Secondary Voltage
24V
Relay Type
SPNO/SPNC
Primary Connection
Color coded leads - pre stripped
120V FLA Rating
13.8
Secondary Connection
Terminal board with 5 screw terminals
VA Rating
40
120V LRA Rating
82.8
208-240V FLA Rating
6.9
208-240V LRA Rating
41.4
HP Rating
0.75
MFG NameMFG #
HoneywellR8285E-1007
PackardFC90118
RBM90-118
Smart ElectricSFC018
White Rodgers90-118E
ZettlerZC90113

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
