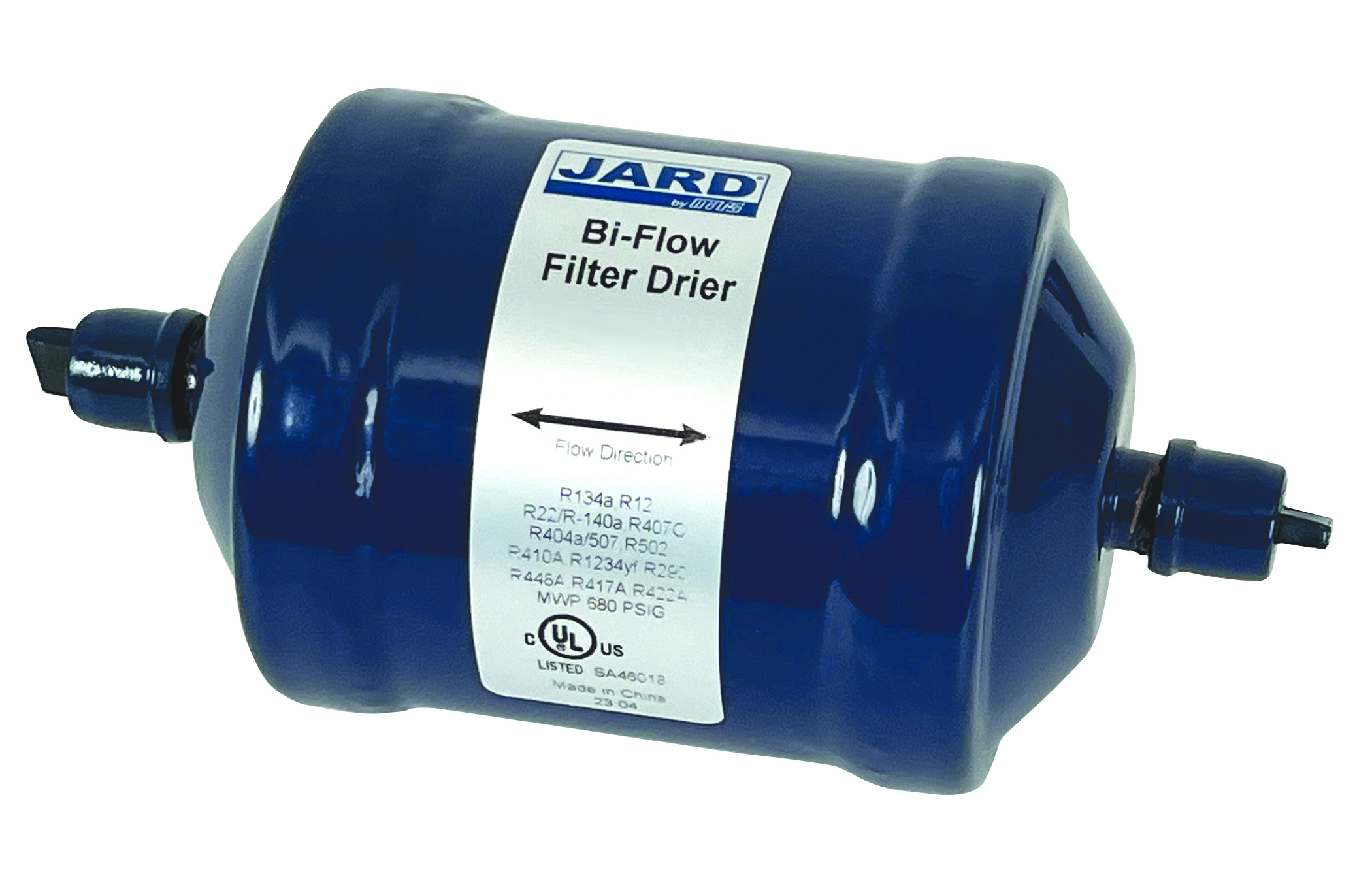

JBF083S BIFLOW DRIER
Drier Type
Heat pump (Bi-flow)
Inlet (in.)
3/8
Core Size (in.)
08
Outlet (in.)
3/8
Inlet connection type
SOLDER
Outlet connection type
SOLDER
Max. Working Pressure (PSI)
680 psig
Material
Molecular Sieve/Activated Alumina Blend
Connection Material
Copper
Body Material
Steel
R-22 Flow Capacity (Tons)
5.1
R-407C Flow Capacity (Tons)
5
R-410A Flow Capacity (Tons)
5.1
Approved Refrigerants
R134a, R12, R22, R407C, R404a, R410A, R290, R448A
Filtration
20 microns
Item #:
28140
JARD Liquid Line Drier
- Solid Core design
- Reversible refrigerant flow design for heat pumps
- Contains activated alumina and molecular sieve
- Durable powder coated paint
- UL Approved
Filter Driers
Drier Type
Heat pump (Bi-flow)
Inlet (in.)
3/8
Core Size (in.)
08
Outlet (in.)
3/8
Inlet connection type
SOLDER
Outlet connection type
SOLDER
Max. Working Pressure (PSI)
680 psig
Material
Molecular Sieve/Activated Alumina Blend
Connection Material
Copper
Body Material
Steel
R-22 Flow Capacity (Tons)
5.1
R-407C Flow Capacity (Tons)
5
R-410A Flow Capacity (Tons)
5.1
Approved Refrigerants
R134a, R12, R22, R407C, R404a, R410A, R290, R448A
Filtration
20 microns
| MFG Name | MFG # |
| Danfoss | DCB 083s, 023Z1433 |
| Emerson | BFK 083S, BSB 083S |
| MARS | MBF-083S, 20176 |
| Mueller | HPS-083, 19000 |
| Parker | 3SSBF3S, BF083S |
| SUPCO | HP083S |
| Smart Electric | SBD-083S |
| Sporlan | HPC-103-S |
| Venti | BF-083S |
| Virginia KMP | CBF083S |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
