Home  >  Refrigeration  >  Filter Driers  >  JARD Driers  > JSD13-5S SUCTION LINE DRIER

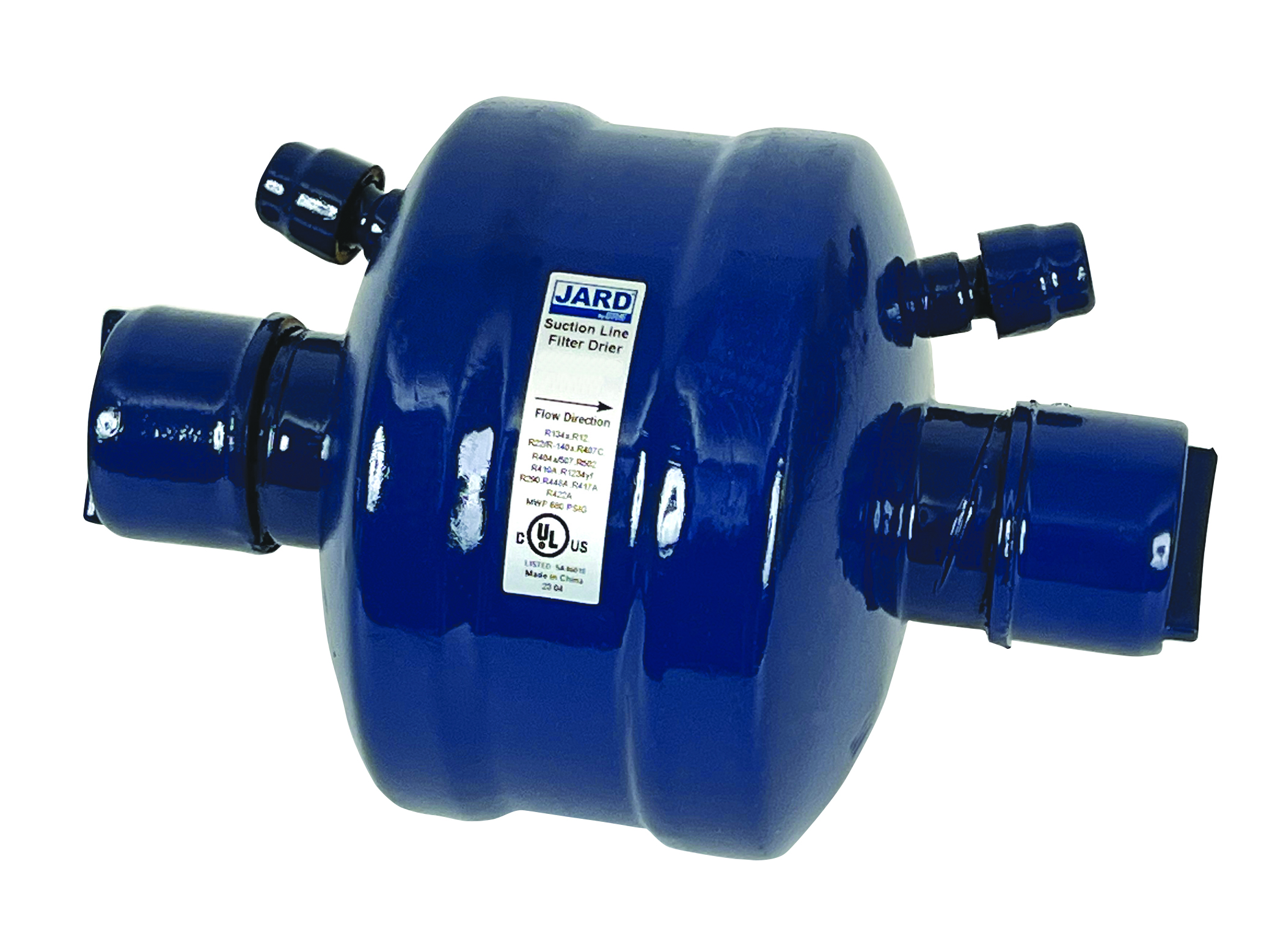

JSD13-5S SUCTION LINE DRIER

Drier Type Suction line Inlet (in.) 5/8 Core Size (in.) 13 Outlet (in.) 5/8 Inlet connection type SOLDER Outlet connection type SOLDER Max. Working Pressure (PSI) 680 psig Material Molecular Sieve/Activated Alumina Blend Connection Material Copper Body Material Steel R-22 Flow Capacity (Tons) 5 R-407C Flow Capacity (Tons) 4.9 R-410A Flow Capacity (Tons) 6.2 Approved Refrigerants R134a, R12, R22, R407C, R404a, R410A, R290, R448A Filtration 20 microns
Item #: 28160
28160

JARD Liquid Line Drier

  • Contains activated alumina and molecular sieve
  • Wide diameter minimizes pressure drop
  • Dual access valves
  • Durable powder coated paint
  • UL Approved

Filter Driers

Drier Type
Suction line
Inlet (in.)
5/8
Core Size (in.)
13
Outlet (in.)
5/8
Inlet connection type
SOLDER
Outlet connection type
SOLDER
Max. Working Pressure (PSI)
680 psig
Material
Molecular Sieve/Activated Alumina Blend
Connection Material
Copper
Body Material
Steel
R-22 Flow Capacity (Tons)
5
R-407C Flow Capacity (Tons)
4.9
R-410A Flow Capacity (Tons)
6.2
Approved Refrigerants
R134a, R12, R22, R407C, R404a, R410A, R290, R448A
Filtration
20 microns
MFG NameMFG #
DanfossDAS 165sVV, 023Z1010
EmersonSFD 13F5VV, BSS 165S
MuellerFDS-165-TT, 17227
ParkerSLD 13-5SV-HH
SupcoSSLD165S
Smart ElectricSSK-165SV
SporlanC-165-S-T-HH
VentiSD165S

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
