Home  >  HVAC/R Components  >  Fan Blades  >  3 Wing Adapter Blades  > CSA 14233 14" 3 WING 23 DEG CW

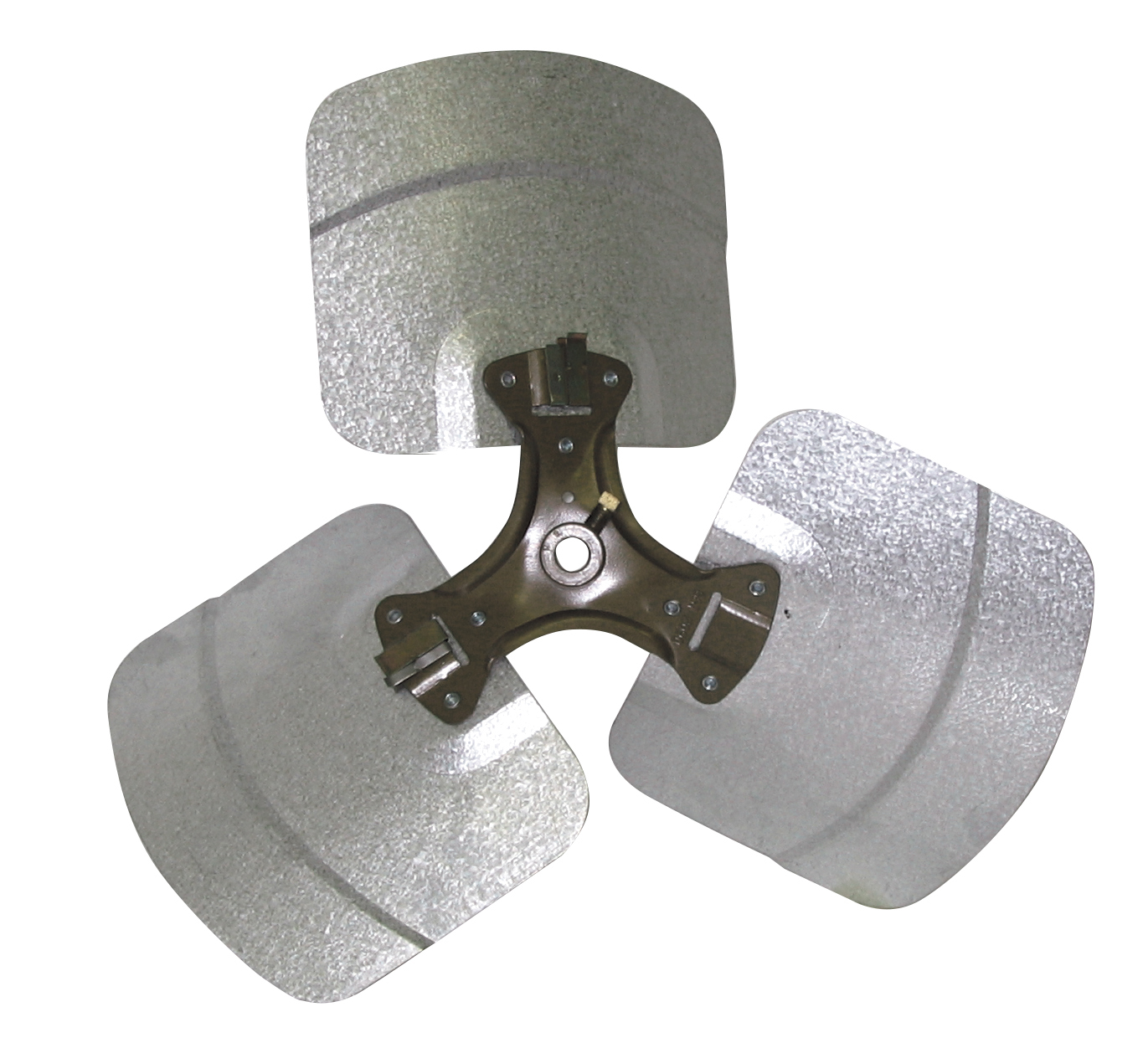

CSA 14233 14" 3 WING 23 DEG CW

Diameter (in.) 14 Type Condenser Fan Blades No. of Blades 3 Pitch (Degree) 23 Rotation CW Material Aluminum Max. RPM 1725 Depth (in.) 2 43/64 CFM @ 0.000-In. SP 1640 Min. HP @ 0.000-In. SP 0.1494 CFM @ 0.300-In. SP 1387 Min. HP @ 0.300-In. SP 0.1732
Item #: 40033

Standard Pack: 2
Must order in multiples of: 2
40033

Heavy Duty Condenser Fan Blades

  • Uses universal hex/rnd adapter hubs
  • Designed for rigorous R/HVAC low pressure app.
  • Durable, efficient & Quiet
  • High strength aluminum alloy

Fan Blades

Diameter (in.)
14
Type
Condenser Fan Blades
No. of Blades
3
Pitch (Degree)
23
Rotation
CW
Material
Aluminum
Max. RPM
1725
Depth (in.)
2 43/64
CFM @ 0.000-In. SP
1640
Min. HP @ 0.000-In. SP
0.1494
CFM @ 0.300-In. SP
1387
Min. HP @ 0.300-In. SP
0.1732
