Home  >  HVAC/R Components  >  Fan Blades  >  2 Fixed Wing  > 24" 2W 26 DEG CW 1/2" H-DIS

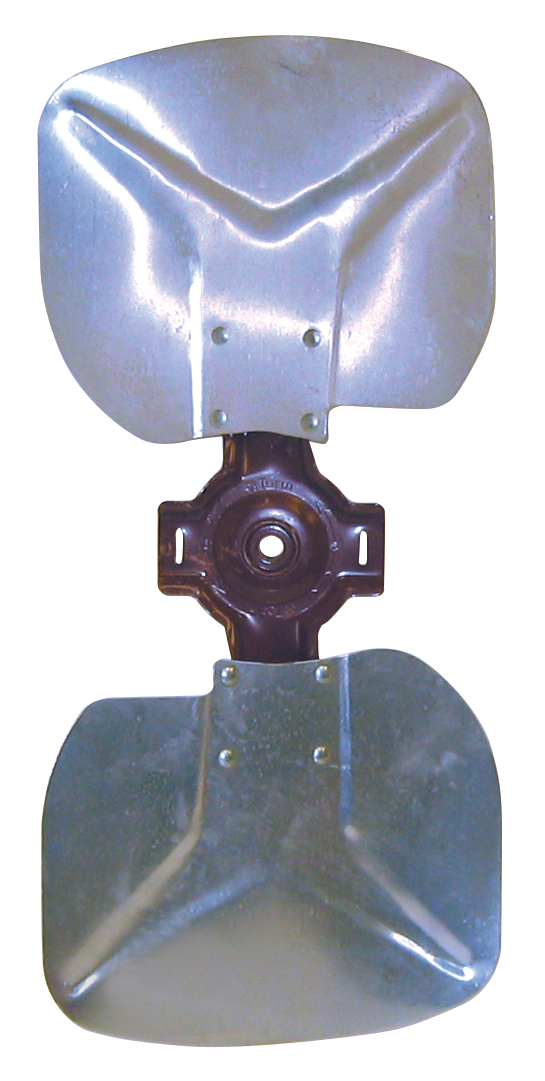

24" 2W 26 DEG CW 1/2" H-DIS

Diameter (in.) 24 Type Fixed Hub No. of Blades 2 Bore Diameter (in.) 1/2 Pitch (Degree) 26 Rotation CW Material Aluminum Max. RPM 1140 Depth (in.) 4 11/64 CFM @ 0.000-In. SP 5882 Min. HP @ 0.000-In. SP 0.3896 CFM @ 0.300-In. SP 4366 Min. HP @ 0.300-In. SP 0.4736
Item #: 40325

Standard Pack: 2
Must order in multiples of: 2
40325

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • 1/2 in. hub
  • Fits many OEM's

Fan Blades

Diameter (in.)
24
Type
Fixed Hub
No. of Blades
2
Bore Diameter (in.)
1/2
Pitch (Degree)
26
Rotation
CW
Material
Aluminum
Max. RPM
1140
Depth (in.)
4 11/64
CFM @ 0.000-In. SP
5882
Min. HP @ 0.000-In. SP
0.3896
CFM @ 0.300-In. SP
4366
Min. HP @ 0.300-In. SP
0.4736
