Home  >  HVAC/R Components  >  Fan Blades  >  3 Fixed Wing  > 22" 3W 24 DEG CW INT

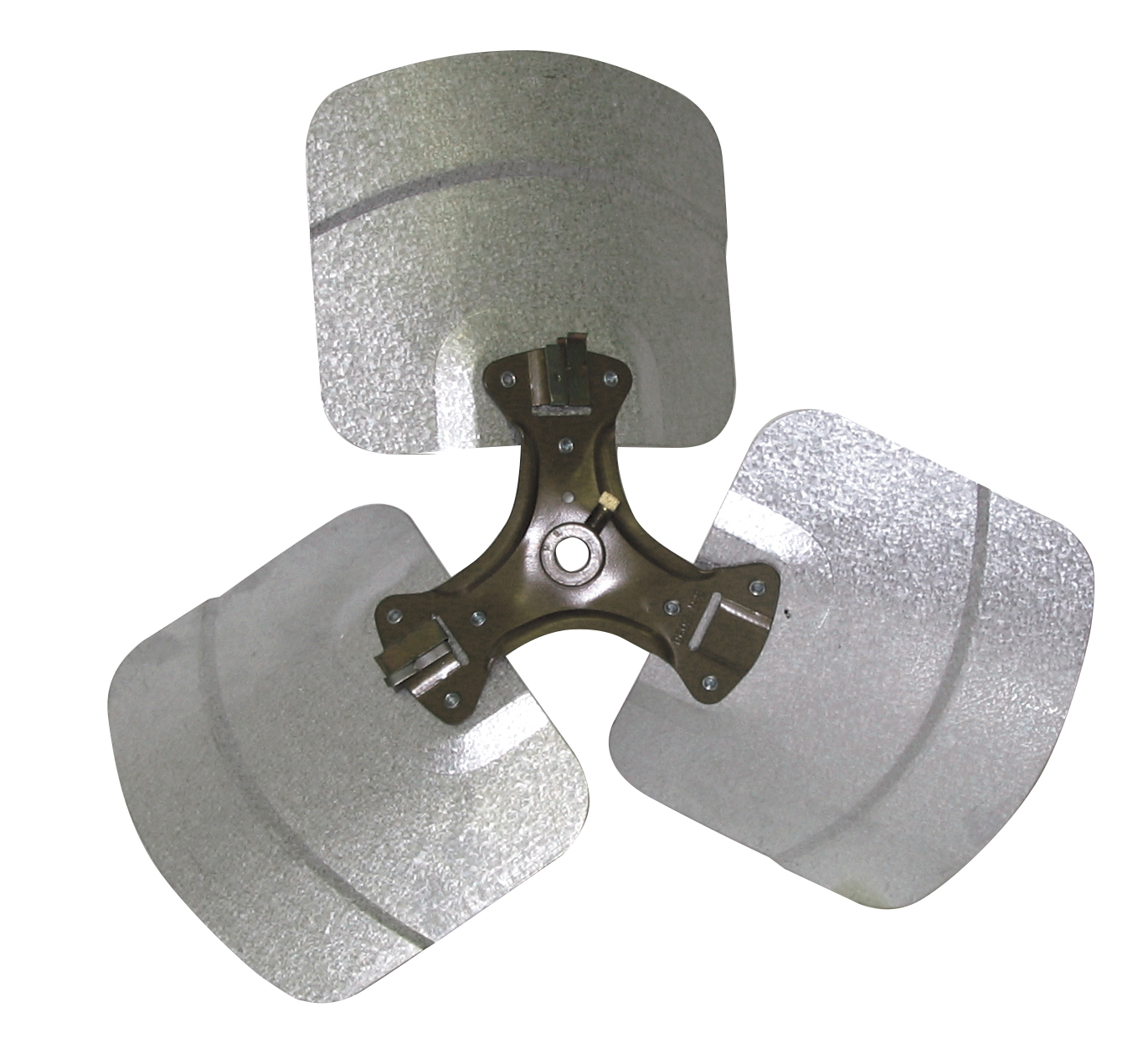

22" 3W 24 DEG CW INT

Diameter (in.) 22 Type Fixed Hub No. of Blades 3 Bore Diameter (in.) 1/2 Pitch (Degree) 24 Rotation CW Material Aluminum Max. RPM 1140 Depth (in.) 3 13/16 CFM @ 0.000-In. SP 4788 Min. HP @ 0.000-In. SP 0.3111 CFM @ 0.300-In. SP 3621 Min. HP @ 0.300-In. SP 0.388
Item #: 40353

Standard Pack: 2
Must order in multiples of: 2
40353

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • 1/2 in. hub
  • Fits many OEM's

Fan Blades

Diameter (in.)
22
Type
Fixed Hub
No. of Blades
3
Bore Diameter (in.)
1/2
Pitch (Degree)
24
Rotation
CW
Material
Aluminum
Max. RPM
1140
Depth (in.)
3 13/16
CFM @ 0.000-In. SP
4788
Min. HP @ 0.000-In. SP
0.3111
CFM @ 0.300-In. SP
3621
Min. HP @ 0.300-In. SP
0.388
