Home  >  HVAC/R Components  >  Fan Blades  >  3 Fixed Wing  > F22283 22'3W28DEG CW 1/2'H INT

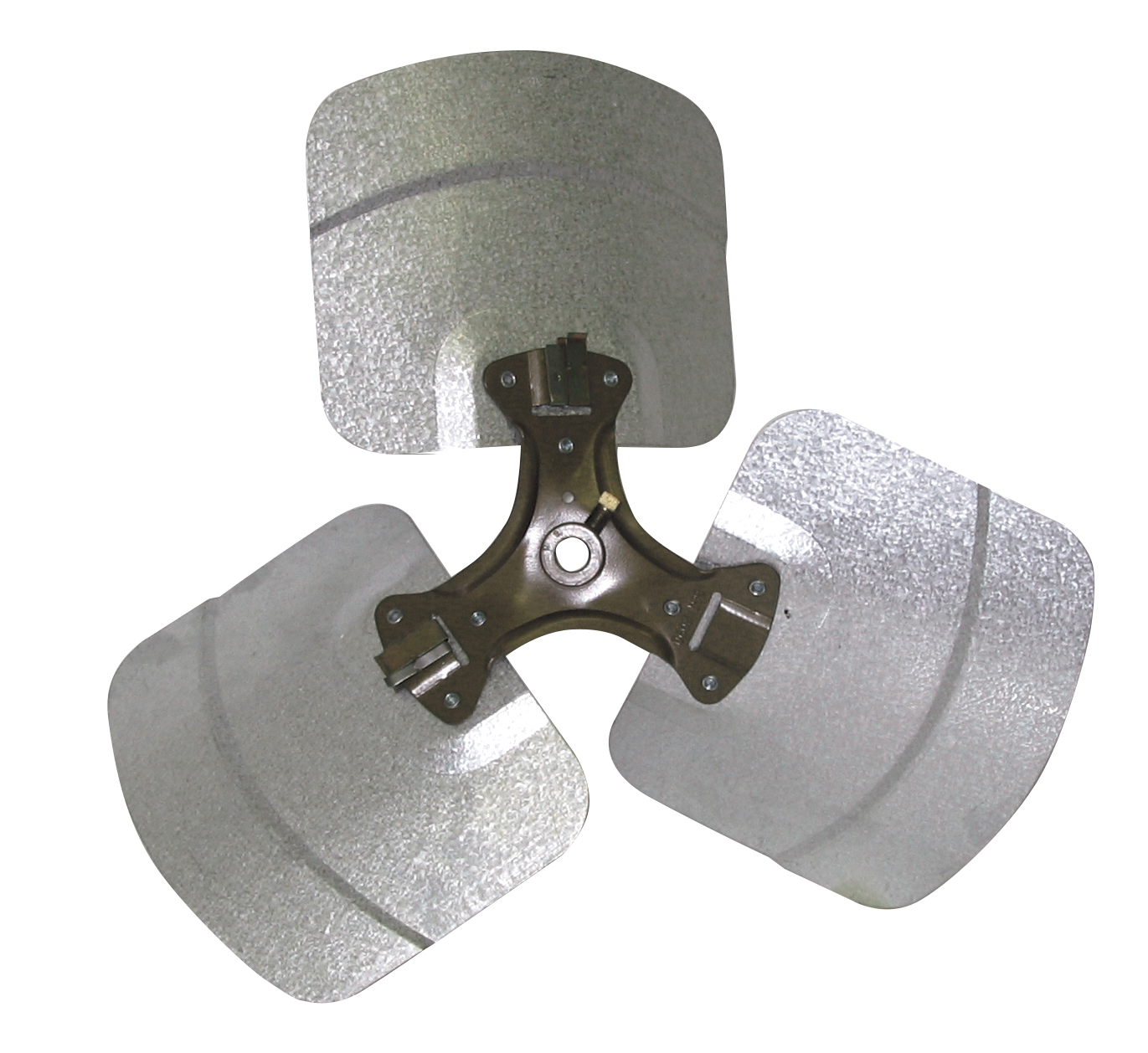

F22283 22'3W28DEG CW 1/2'H INT

Diameter (in.) 22 Type Fixed Hub No. of Blades 3 Bore Diameter (in.) 1/2 Pitch (Degree) 28 Rotation CW Material Aluminum Max. RPM 1140 Depth (in.) 5 11/64 CFM @ 0.000-In. SP 5472 Min. HP @ 0.000-In. SP 0.4 CFM @ 0.300-In. SP 4338 Min. HP @ 0.300-In. SP 0.4885
Item #: 40355

Standard Pack: 2
Must order in multiples of: 2
40355

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • 1/2 in. hub
  • Fits many OEM's

Fan Blades

Diameter (in.)
22
Type
Fixed Hub
No. of Blades
3
Bore Diameter (in.)
1/2
Pitch (Degree)
28
Rotation
CW
Material
Aluminum
Max. RPM
1140
Depth (in.)
5 11/64
CFM @ 0.000-In. SP
5472
Min. HP @ 0.000-In. SP
0.4
CFM @ 0.300-In. SP
4338
Min. HP @ 0.300-In. SP
0.4885
