Home  >  HVAC/R Components  >  Fan Blades  >  4 Fixed Wing  > 16" 4W 33 DEG CW

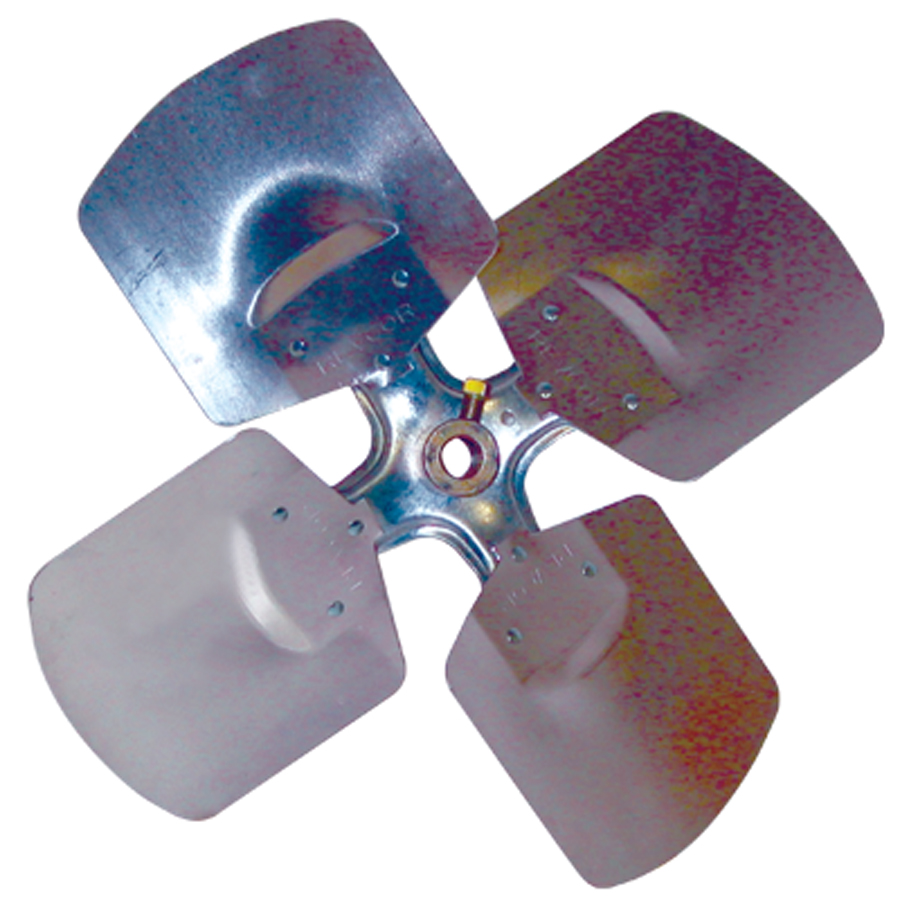

16" 4W 33 DEG CW

Diameter (in.) 16 Type Fixed Hub No. of Blades 4 Bore Diameter (in.) 1/2 Pitch (Degree) 33 Rotation CW Material Aluminum Max. RPM 1725 Depth (in.) 4 9/32 CFM @ 0.000-In. SP 3497 Min. HP @ 0.000-In. SP 0.6098 CFM @ 0.300-In. SP 3167 Min. HP @ 0.300-In. SP 0.6752
Item #: 40372

Standard Pack: 2
Must order in multiples of: 2
40372

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • Fits many OEM's
  • 1/2 in Discharge hub

Fan Blades

Diameter (in.)
16
Type
Fixed Hub
No. of Blades
4
Bore Diameter (in.)
1/2
Pitch (Degree)
33
Rotation
CW
Material
Aluminum
Max. RPM
1725
Depth (in.)
4 9/32
CFM @ 0.000-In. SP
3497
Min. HP @ 0.000-In. SP
0.6098
CFM @ 0.300-In. SP
3167
Min. HP @ 0.300-In. SP
0.6752
