Home  >  HVAC/R Components  >  Fan Blades  >  4 Fixed Wing  > F22244 22"4W 24DEG CW

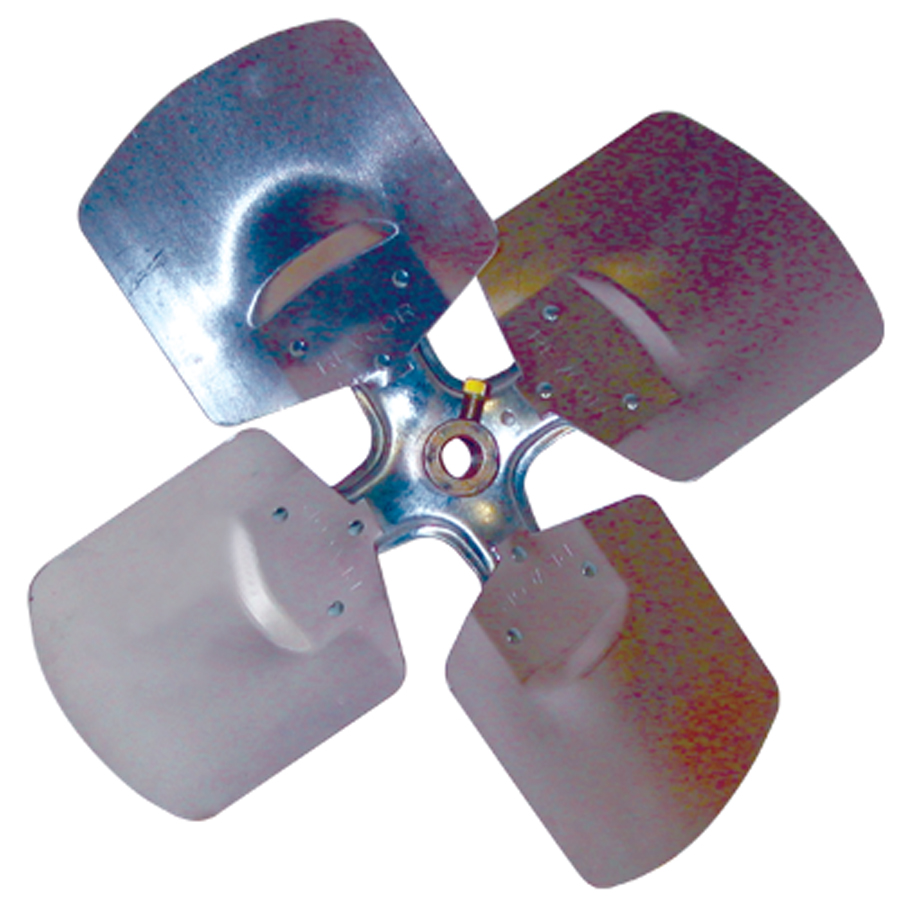

F22244 22"4W 24DEG CW

Diameter (in.) 22 Type Fixed Hub No. of Blades 4 Bore Diameter (in.) 1/2 Pitch (Degree) 24 Rotation CW Material Aluminum Max. RPM 1140 Depth (in.) 3 55/64 CFM @ 0.000-In. SP 4861 Min. HP @ 0.000-In. SP 0.3496 CFM @ 0.300-In. SP 4011 Min. HP @ 0.300-In. SP 0.4585
Item #: 40380

Standard Pack: 2
Must order in multiples of: 2
40380

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • Fits many OEM's
  • 1/2 in hub

Fan Blades

Diameter (in.)
22
Type
Fixed Hub
No. of Blades
4
Bore Diameter (in.)
1/2
Pitch (Degree)
24
Rotation
CW
Material
Aluminum
Max. RPM
1140
Depth (in.)
3 55/64
CFM @ 0.000-In. SP
4861
Min. HP @ 0.000-In. SP
0.3496
CFM @ 0.300-In. SP
4011
Min. HP @ 0.300-In. SP
0.4585
