Home  >  HVAC/R Components  >  Fan Blades  >  4 Fixed Wing  > F22338 22"4W33DEG CCW FIXED

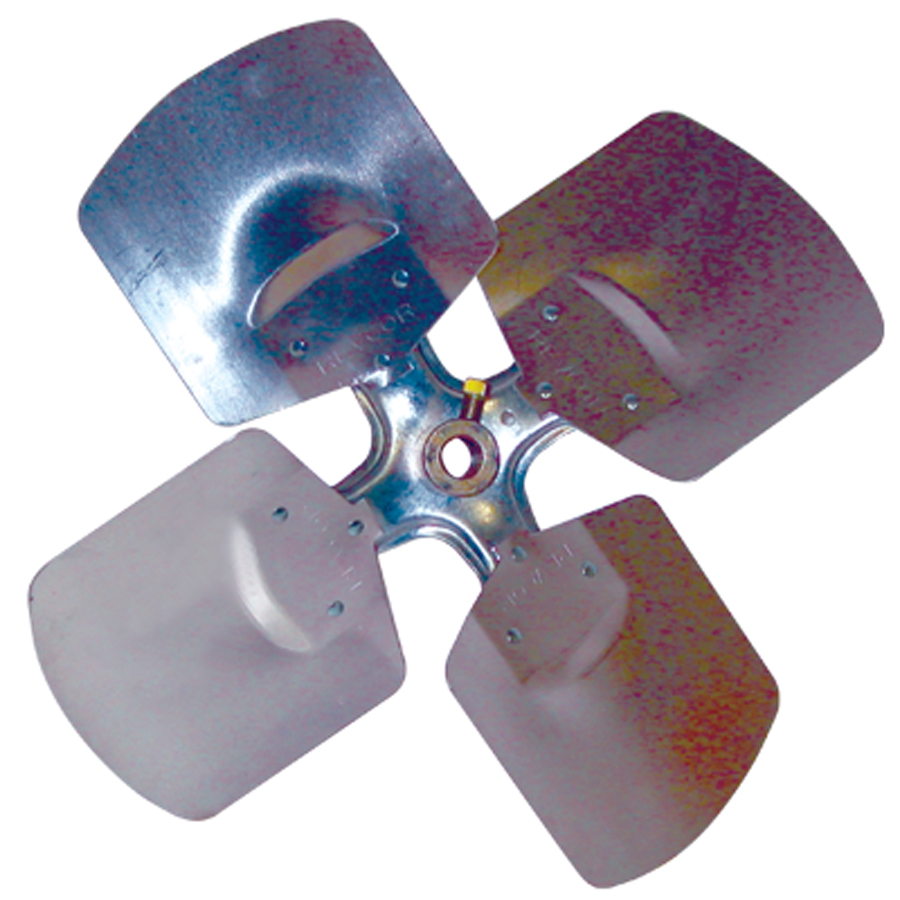

F22338 22"4W33DEG CCW FIXED

Diameter (in.) 22 Type Fixed Hub No. of Blades 4 Bore Diameter (in.) 1/2 Pitch (Degree) 38 Rotation CCW Material Aluminum Max. RPM 1140 Depth (in.) 5 5/6 CFM @ 0.000-In. SP 7114 Min. HP @ 0.000-In. SP 0.8623 CFM @ 0.300-In. SP 5967 Min. HP @ 0.300-In. SP 0.9518
Item #: 40382

Standard Pack: 2
Must order in multiples of: 2
40382

Fixed Hub Fan Blades

  • High strength aluminum alloy
  • Designed for lower static pressure applications
  • Fits many OEM's
  • 1/2 in hub

Fan Blades

Diameter (in.)
22
Type
Fixed Hub
No. of Blades
4
Bore Diameter (in.)
1/2
Pitch (Degree)
38
Rotation
CCW
Material
Aluminum
Max. RPM
1140
Depth (in.)
5 5/6
CFM @ 0.000-In. SP
7114
Min. HP @ 0.000-In. SP
0.8623
CFM @ 0.300-In. SP
5967
Min. HP @ 0.300-In. SP
0.9518
