Home  >  HVAC/R Components  >  Contactors  >  MARS 780 Contactors  > 2P 30A 24V QC & SC TERM

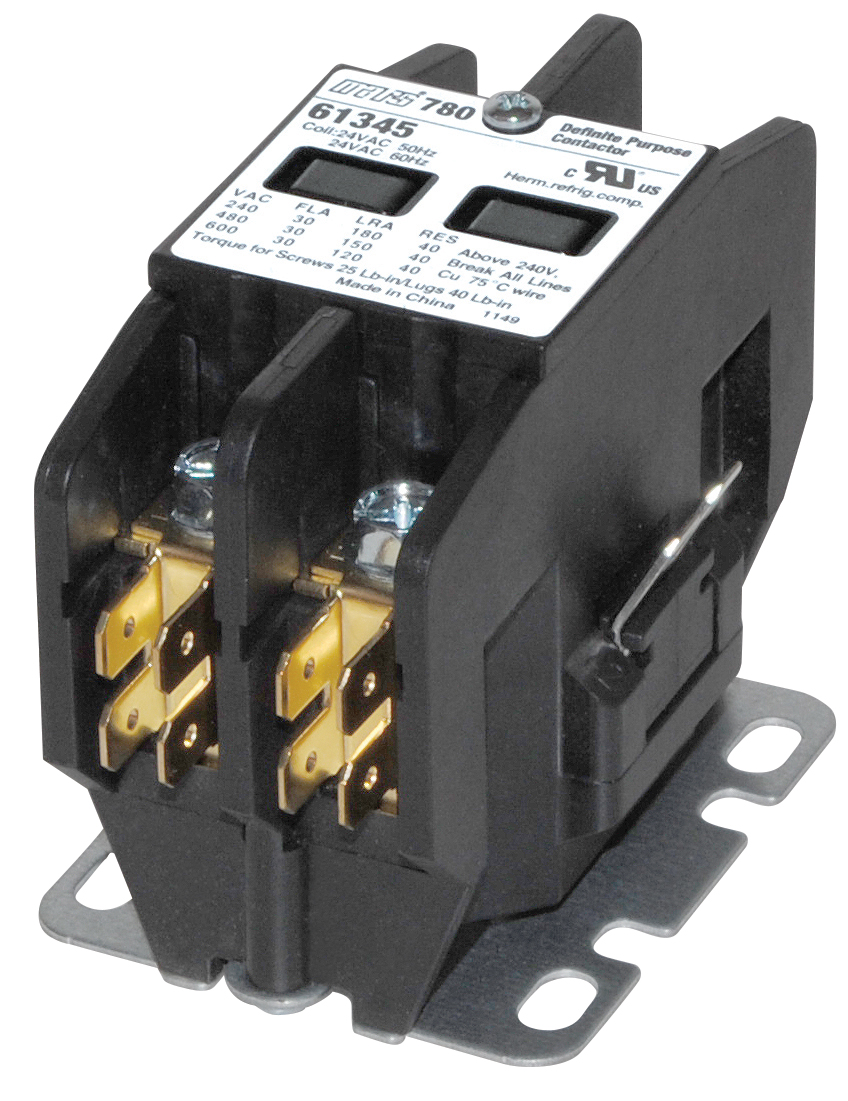

2P 30A 24V QC & SC TERM

Contactor Type Definite Purpose No. of Poles 2 FLA Inductive 30 FLA Resistive 40 Coil Voltage 24 Coil Hz 50/60 Lug or Screw Terminal Screw/Quad QC Standards UL No. of QC Terminals Per Pole 4
Item #: 61345
61345

MARS 780 Professional Grade Definite Purpose Contactors

  • Designed for use on refrigeration, air conditioning and electric heating systems
  • Engineered for today's most demanding commercial refrigeration and HVAC applications
  • Enclosed body provides a quieter running contactor and a longer life expectancy
  • Oversized Arch Window to simplify wiring
  • High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
  • Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
  • Removable Coils allow field replacement of damaged coils
  • Removable Cover provides full access to the contacts
  • Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

Contactors

Contactor Type
Definite Purpose
No. of Poles
2
FLA Inductive
30
FLA Resistive
40
Coil Voltage
24
Coil Hz
50/60
Lug or Screw Terminal
Screw/Quad QC
Standards
UL
No. of QC Terminals Per Pole
4
MFG NameMFG #
Siemens/Furnas45EG20AJ, 45CG20AJ, 45DG20AJ

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
MFG NameMFG #
A-1 ComponentF30AMP2P24P, 7305
Copeland912203000
Cutler HammerC25BNB230T, CB25BN230T
HartlandCON-2/24/30, HCC-2XQ01AA
HoneywellDP2030A5004, DP2030A1003
IRPDP23024F, DP23024LF
PackardC2S30A
Square DDP32V14
SUPCODP30242
ZettlerXMC0-252EBBC

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
