Home
>
HVAC/R Components
>
Contactors
>
MARS 780 Contactors
> 3P 30A 277V BOX LUG TERM
3P 30A 277V BOX LUG TERM
Contactor Type
Definite Purpose
No. of Poles
3
FLA Inductive
30
FLA Resistive
40
Coil Voltage
277
Coil Hz
60
Lug or Screw Terminal
Box Lug/Dual QC
Standards
UL
No. of QC Terminals Per Pole
2
Item #:
61753

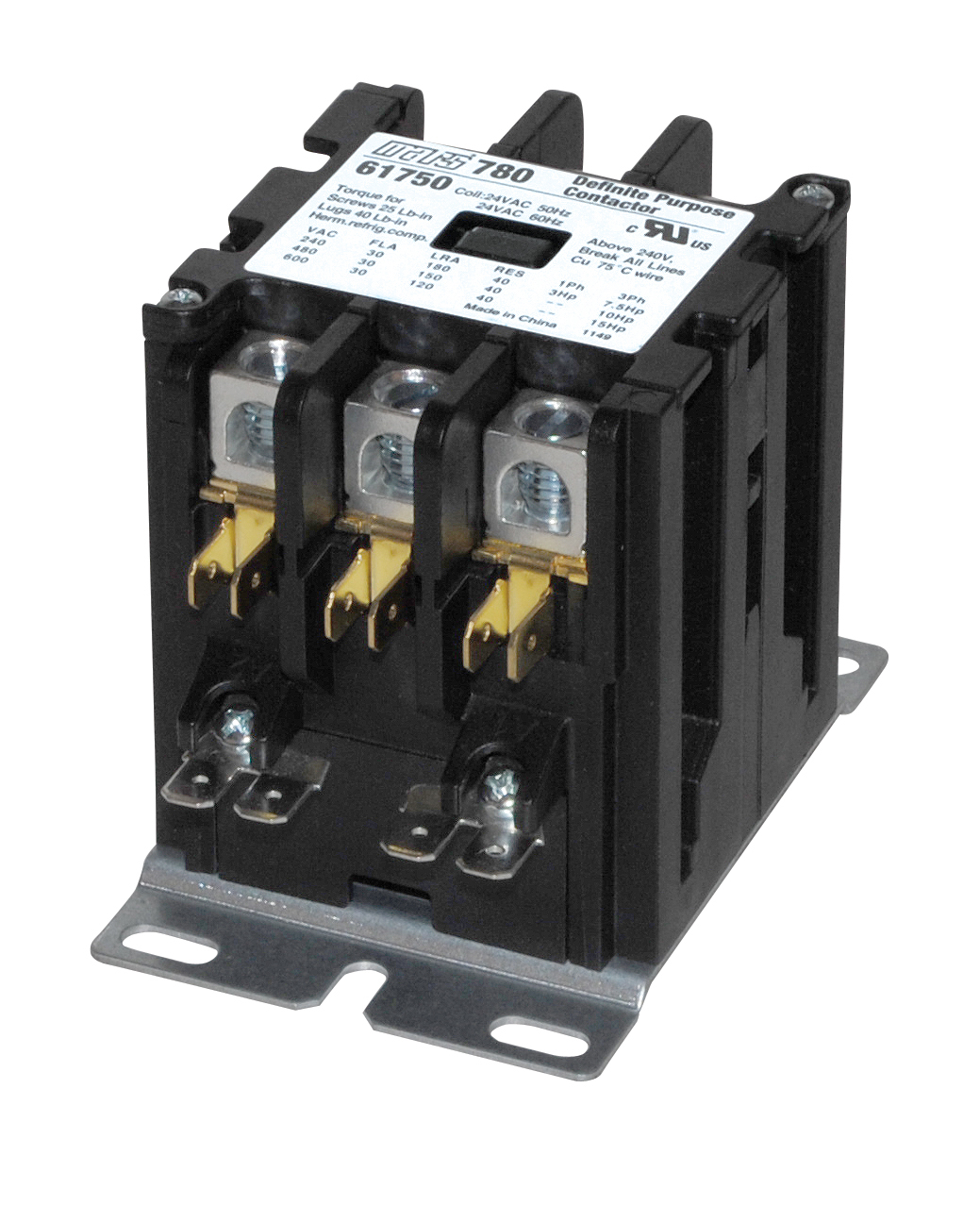

MARS 780 Professional Grade Definite Purpose Contactors
- Designed for use on refrigeration, air conditioning and electric heating systems
- Engineered for today's most demanding commercial refrigeration and HVAC applications
- Enclosed body provides a quieter running contactor and a longer life expectancy
- Oversized Arch Window to simplify wiring
- High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
- Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
- Removable Coils allow field replacement of damaged coils
- Removable Cover provides full access to the contacts
- Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity
Contactors
Contactor Type
Definite Purpose
No. of Poles
3
FLA Inductive
30
FLA Resistive
40
Coil Voltage
277
Coil Hz
60
Lug or Screw Terminal
Box Lug/Dual QC
Standards
UL
No. of QC Terminals Per Pole
2
