Home  >  HVAC/R Components  >  Contactors  >  MARS 780 Contactors  > 2P 40A 24V QC & BL TERM

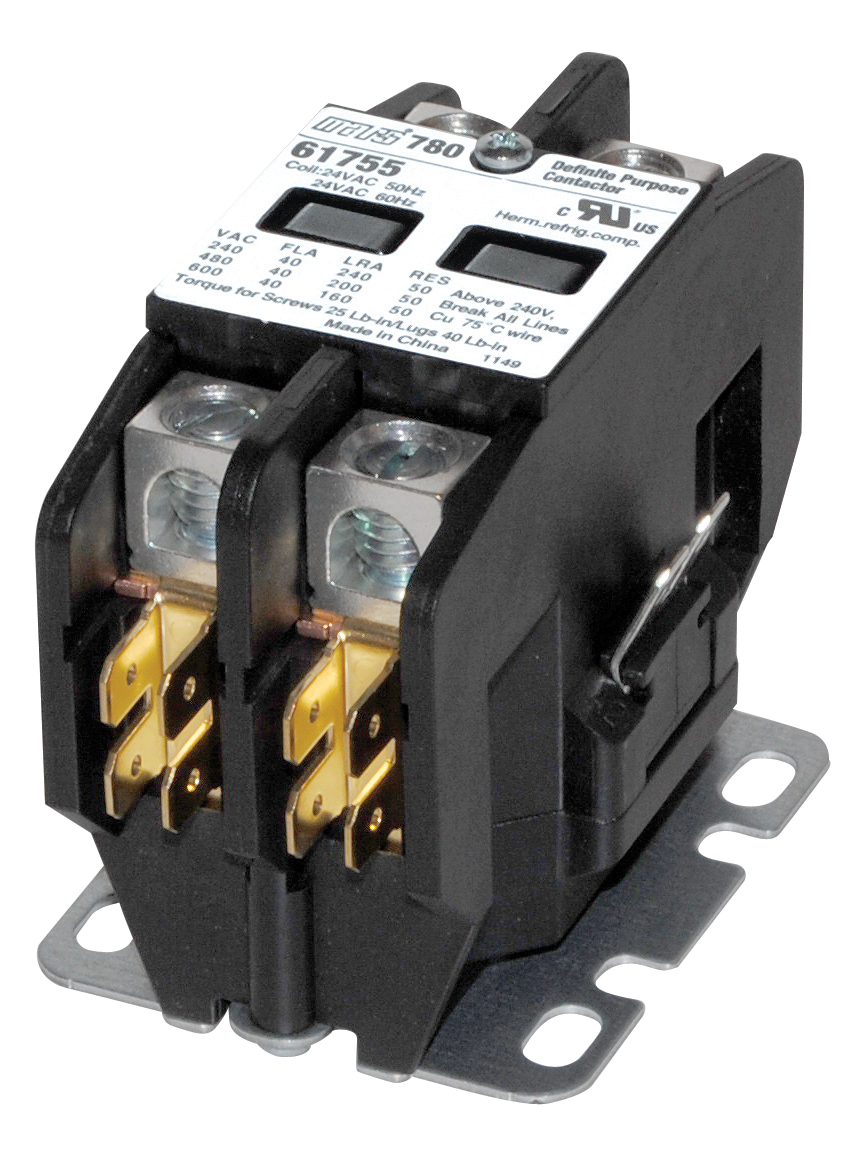

2P 40A 24V QC & BL TERM

Contactor Type Definite Purpose No. of Poles 2 FLA Inductive 40 FLA Resistive 50 Coil Voltage 24 Coil Hz 50/60 Lug or Screw Terminal Box Lug/Quad QC Standards UL No. of QC Terminals Per Pole 4
Item #: 61755
61755

MARS 780 Professional Grade Definite Purpose Contactors

  • Designed for use on refrigeration, air conditioning and electric heating systems
  • Engineered for today's most demanding commercial refrigeration and HVAC applications
  • Enclosed body provides a quieter running contactor and a longer life expectancy
  • Oversized Arch Window to simplify wiring
  • High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
  • Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
  • Removable Coils allow field replacement of damaged coils
  • Removable Cover provides full access to the contacts
  • Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

Contactors

Contactor Type
Definite Purpose
No. of Poles
2
FLA Inductive
40
FLA Resistive
50
Coil Voltage
24
Coil Hz
50/60
Lug or Screw Terminal
Box Lug/Quad QC
Standards
UL
No. of QC Terminals Per Pole
4
MFG NameMFG #
Siemens/Furnas45GG20AJL, 45FG20AJ, 45GG20AJ

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
MFG NameMFG #
Copeland912204000
Cutler HammerC25DNF240T, C25BNB240T
DiversitechEC40224
EatonDPE40224
HartlandCON-2/24/40
HoneywellDP2040A5003
IRPDP24024F
PackardC2S40A
Packard Titan MaxTMX240A2
Square DDPA42V14
Smart ElectricSE2740M
SUPCODP40242
ZettlerXMC0-402EBBC

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
