Home  >  HVAC/R Components  >  Fan Blades  >  Single Piece Aluminum  > 12" DIA 23 DEG CW 5/16 BORE

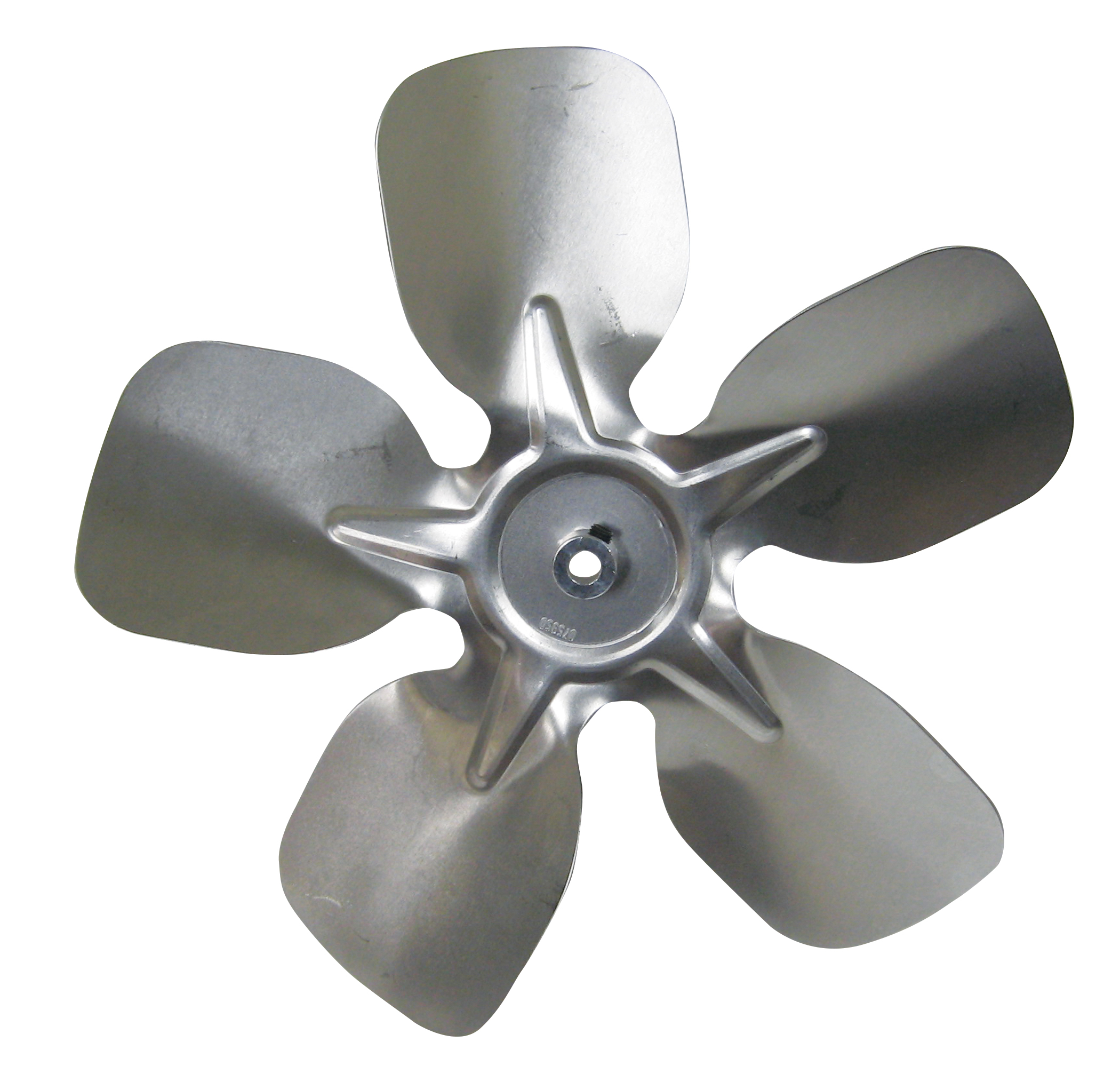

12" DIA 23 DEG CW 5/16 BORE

Diameter (in.) 12 Type Condenser Fan Fixed Hub No. of Blades 5 Bore Diameter (in.) 5/16 Pitch (Degree) 23 Rotation CW Material Aluminum Max. RPM 1725 Depth (in.) 2 3/16 CFM @ 0.000-In. SP 0.06 Min. HP @ 0.000-In. SP 922 CFM @ 0.300-In. SP 829
Item #: 07921
12

Single Piece Aluminum Fan Blade

  • Low noise & energy efficient operation
  • For Unit Bearing Motors

Fan Blades

Diameter (in.)
12
Type
Condenser Fan Fixed Hub
No. of Blades
5
Bore Diameter (in.)
5/16
Pitch (Degree)
23
Rotation
CW
Material
Aluminum
Max. RPM
1725
Depth (in.)
2 3/16
CFM @ 0.000-In. SP
0.06
Min. HP @ 0.000-In. SP
922
CFM @ 0.300-In. SP
829
Brand
MARS
Pack Qty
1
Case Qty
40
Pallet Qty
640
Length
12.00 in.
Width
12.00 in.
Height
.30 in.
Weight
.1500 lbs
Harmonized Tariff Code
8414901080
UPC
685744079217
Country of Origin Code
US
Country of Origin Name
United States
