Home  >  Comfort-Aire  >  Residential A/C & Heat Pump  >  Heat Pumps  >  LE Series  >  VCD  > 30K HYPER HEAT HEAT PUMP

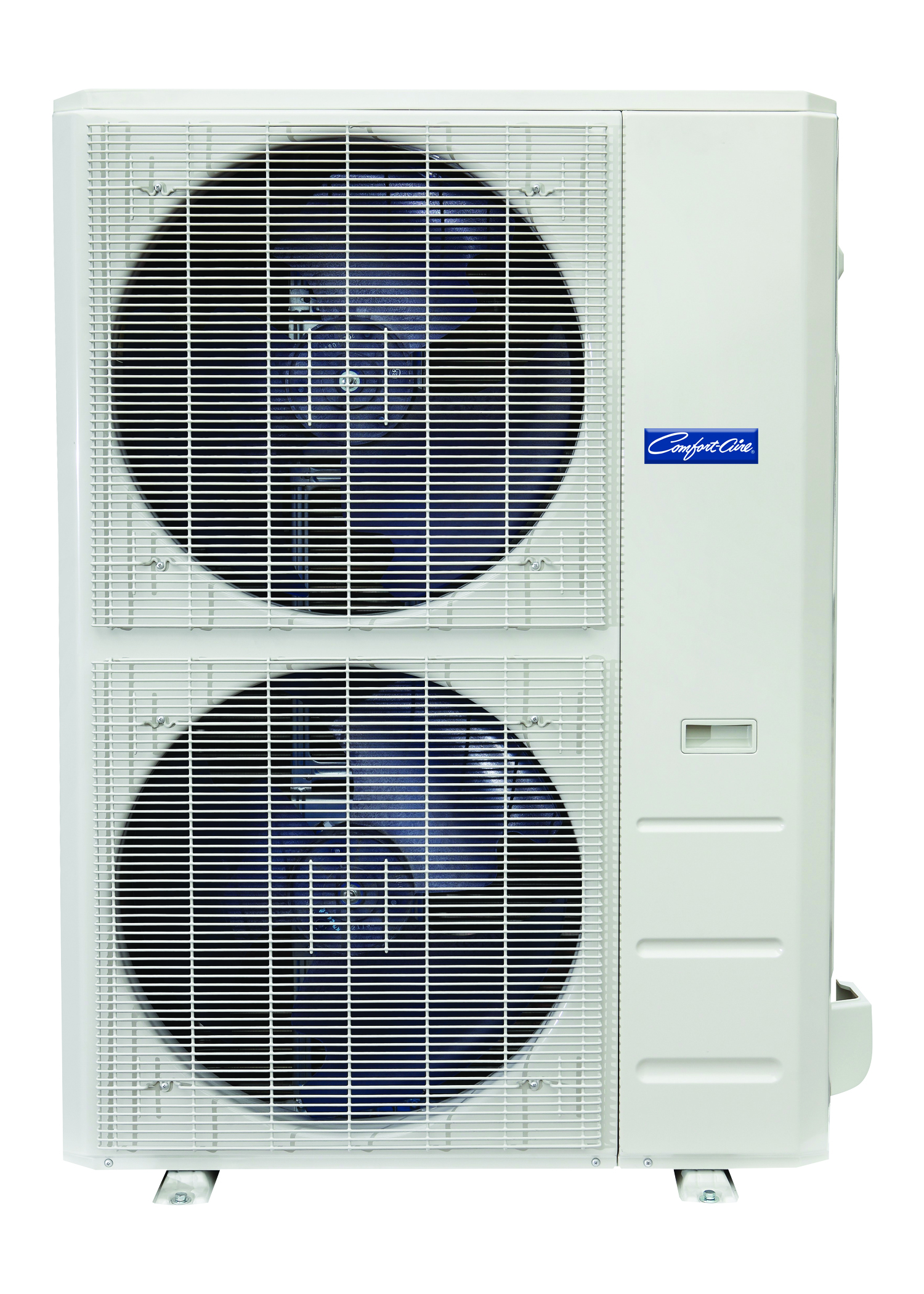

30K HYPER HEAT HEAT PUMP

208/230V 35A 16.2 SEER2
Coil Type Fin & Tube SEER (Min.) 18 Capacity (Tons) 2.5 Refrigerant R-410A Voltage 208/230V-1-60 Compressor Inverter No. of Stages Inverter Max. Amps 35 Width (in.) 37.24 SEER2 (Min.) 16.2 RLA 16.5 Warranty 10 Years EER2 (Min.) 10 Circuit Breaker 35 HSPF2 (Min.) 8.9 Depth (in.) 16.14 Min. Circuit Ampacity 23 Cabinet Gloss enameled-steel finish Sound Rating (dBA) 60.5 Connection Size (in.) 3/8 - 3/4 Serviceability Easy access to electrical panels Shipping Wt (lbs) 159.83 Height (in.) 31.89 Matches See www.ahridirectory.org Test Listing UL US and Canada Certification AHRI 210/240 COP 47F HSPF/HSPF2 3.30 Factory Line-Set Charge (ft.) 25 COP 5F 1.77
Item #: A-VCD30SA-1
A-VCD30SA-1
  • R410A Refrigerant
  • High-quality gold fin condenser coil for maximum heat transfer capacity
  • Side discharge directs hot air and sound away from living area and shrubbery
  • All units run tested
  • Side coil protection
  • Easy access to electrical panels
  • Traditionally styled vertical air handler with multi-position capabilities
  • Efficiencies as high as 18 SEER2
  • Units are capable of reducing noise during defrost
  • 3kW to 25kW in optional auxiliary heat kits
  • Integrated control with LED diagnostics
  • 24VAC thermostat-capable
  • All units UL US and Canada approved and AHRI Certified
  • Charged for 25 feet of interconnecting tubing
  • Heavy-duty inverter compressor
  • 10 year parts and compressor
    •

    Heat Pumps

    Coil Type
    Fin & Tube
    SEER (Min.)
    18
    Capacity (Tons)
    2.5
    Refrigerant
    R-410A
    Voltage
    208/230V-1-60
    Compressor
    Inverter
    No. of Stages
    Inverter
    Max. Amps
    35
    Width (in.)
    37.24
    SEER2 (Min.)
    16.2
    RLA
    16.5
    Warranty
    10 Years
    EER2 (Min.)
    10
    Circuit Breaker
    35
    HSPF2 (Min.)
    8.9
    Depth (in.)
    16.14
    Min. Circuit Ampacity
    23
    Cabinet
    Gloss enameled-steel finish
    Sound Rating (dBA)
    60.5
    Connection Size (in.)
    3/8 - 3/4
    Serviceability
    Easy access to electrical panels
    Shipping Wt (lbs)
    159.83
    Height (in.)
    31.89
    Matches
    See www.ahridirectory.org
    Test Listing
    UL US and Canada
    Certification
    AHRI 210/240
    COP 47F HSPF/HSPF2
    3.30
    Factory Line-Set Charge (ft.)
    25
    COP 5F
    1.77
