> 18KBTU MULTI MINI-SPLIT 22

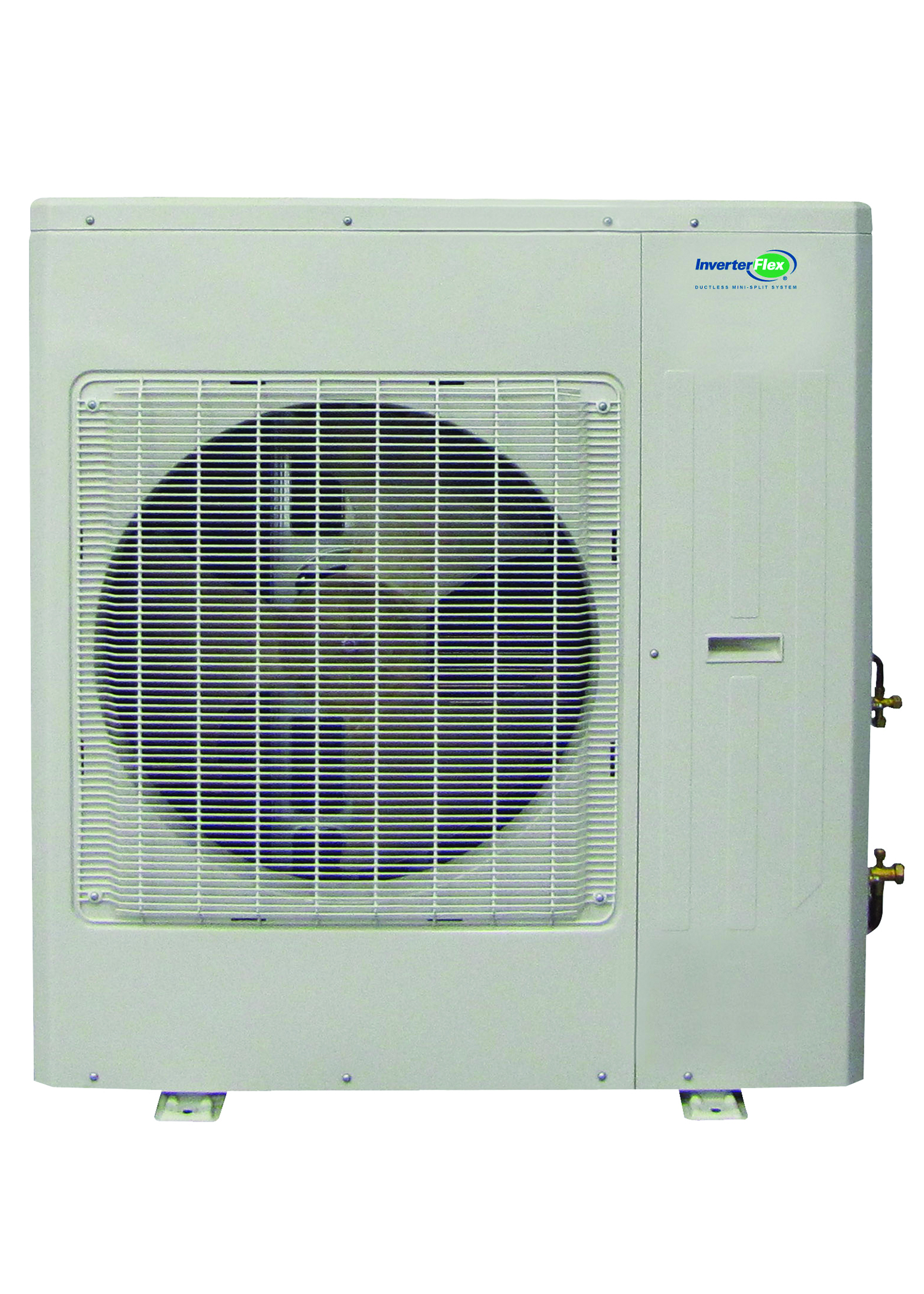

Multi-zone outdoor unit is designed to handle one or two indoor air handlers Indoor units may be mixed and matched, but combined capacity of indoor units should not exceed 150% of outdoor unit's capacity Inverter technology saves an estimated 40% or more on energy consumption over non-inverter models Delivers extra heating capacity even at low ambient temperatures
18KBTU MULTI MINI-SPLIT 22
SEER INVERTER OUTDOOR
Detail
18K 2 Zone Heat Pump
Refrigerant
R410A
EER
11.00
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
22.00/12.50
Cooling Capacity BTUH
18,000
Fuse Amps
25
Inverter Technology
Yes
Heating Capacity BTUH
19,000
Wireless Remote
Yes
Low Ambient Operation
-4°F
Operating Temperature
0° to 118.5°F cooling, -4° to 75°F heating
Warranty
7 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
15
Dimensions HxWxD (in.)
27.5x37.625x15.625
Shipping Wt (lbs)
125
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
SEER2/EER2
21/12.5
No. of Heads
2
Factory Line-Set Charge (ft.)
50
HSPF2
9
Item #:
A-VFH18DB-1
Multi-Zone
Detail
18K 2 Zone Heat Pump
Refrigerant
R410A
EER
11.00
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
22.00/12.50
Cooling Capacity BTUH
18,000
Fuse Amps
25
Inverter Technology
Yes
Heating Capacity BTUH
19,000
Wireless Remote
Yes
Low Ambient Operation
-4°F
Operating Temperature
0° to 118.5°F cooling, -4° to 75°F heating
Warranty
7 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
15
Dimensions HxWxD (in.)
27.5x37.625x15.625
Shipping Wt (lbs)
125
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
SEER2/EER2
21/12.5
No. of Heads
2
Factory Line-Set Charge (ft.)
50
HSPF2
9
