Home
>
Comfort-Aire
>
Ductless Mini-Splits
>
Single Zone
>
VMH
>
Outdoor Unit
> MINI-SPLIT 18K SINGLE
High efficiency HyperV outdoor unit operates down to -22°F ambient temperature Inverter technology matches compressor speed to load demand, saving an estimated 40% or more on energy consumption over non-inverter models Units are rated as high as 23.5 SEER!

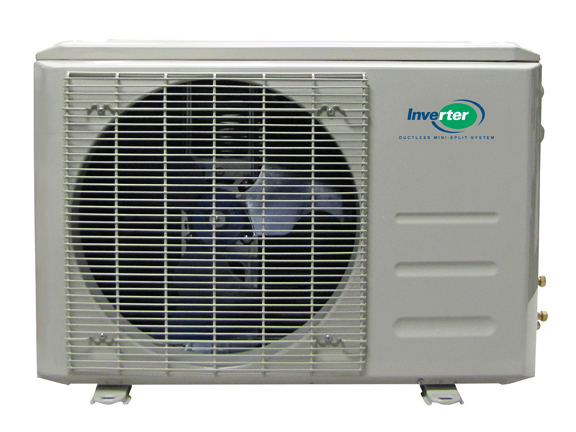

MINI-SPLIT 18K SINGLE
ULTRA LOW TEMP. OUTDOOR
Detail
18K 208/230V Single Zone Heat Pump
Refrigerant
R410A
EER
10.30
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
20.00/12.50
Cooling Capacity BTUH
18,000
Fuse Amps
25
Inverter Technology
Yes
Heating Capacity BTUH
18,000
Wireless Remote
Yes
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
7 years on compressor, 5 year on parts
Fan Speeds
3
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
16
Dimensions HxWxD (in.)
26.5x35-.25x13.375
Shipping Wt (lbs)
108
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
No. of Heads
1
Factory Line-Set Charge (ft.)
25
Item #:
A-VMH18SU-1A
Single Zone
Detail
18K 208/230V Single Zone Heat Pump
Refrigerant
R410A
EER
10.30
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
20.00/12.50
Cooling Capacity BTUH
18,000
Fuse Amps
25
Inverter Technology
Yes
Heating Capacity BTUH
18,000
Wireless Remote
Yes
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
7 years on compressor, 5 year on parts
Fan Speeds
3
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
16
Dimensions HxWxD (in.)
26.5x35-.25x13.375
Shipping Wt (lbs)
108
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
No. of Heads
1
Factory Line-Set Charge (ft.)
25
