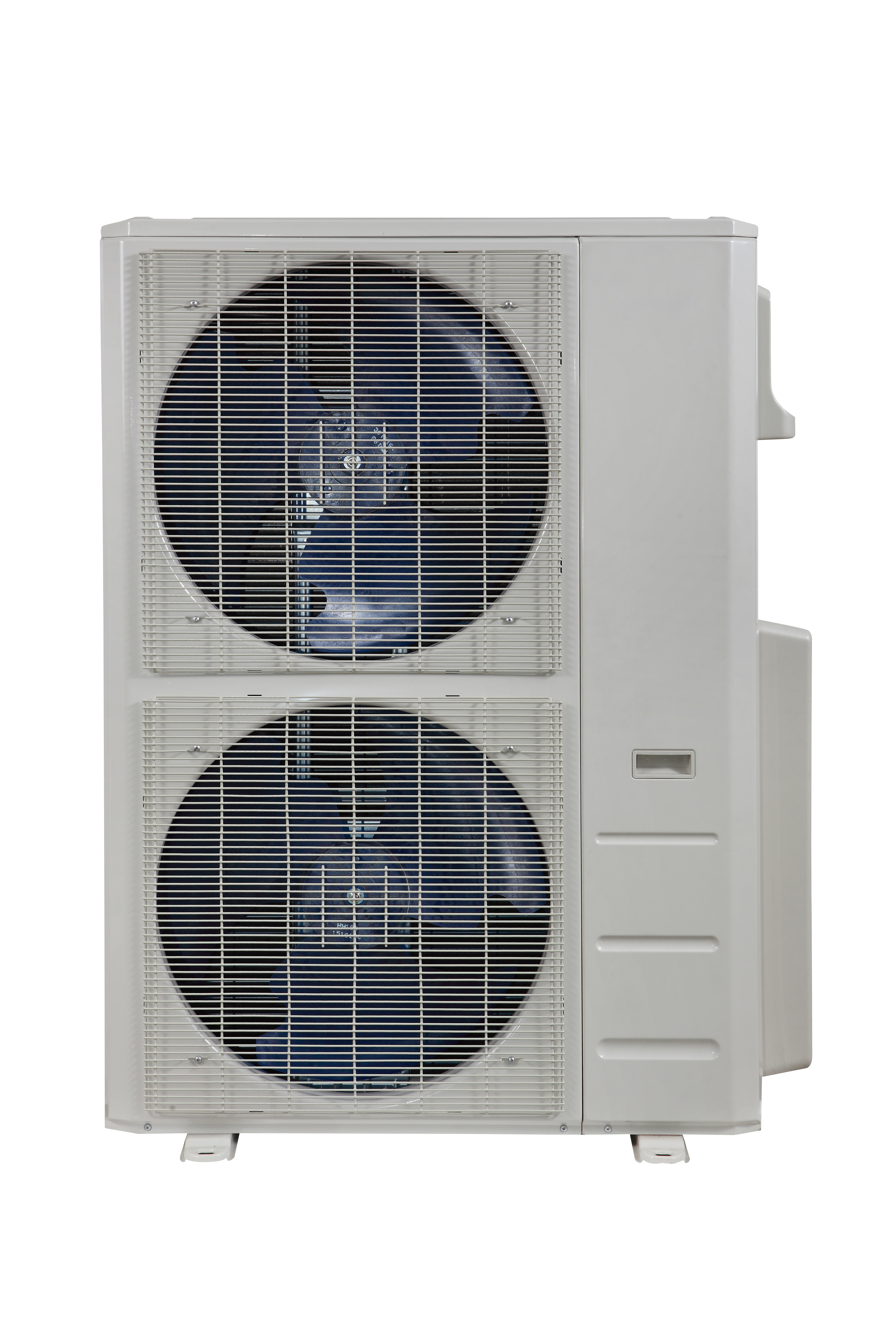

> 48,000 MULTI-SPLIT HEAT PUMP
Multi-zone outdoor unit is designed to handle five indoor air handlers Indoor units may be mixed and matched Inverter technology saves an estimated 40% or more on energy consumption over non-inverter models Delivers extra heating capacity; 100% at 0°F
48,000 MULTI-SPLIT HEAT PUMP
5 ZONE OUTDOOR UNIT
Detail
48K 5 Zone Heat Pump
Refrigerant
R410A
EER
10.20
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
22.40/12.50
Cooling Capacity BTUH
48,000
Fuse Amps
50
Inverter Technology
Yes
Heating Capacity BTUH
48,000
Wireless Remote
Yes
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
7 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
35
Dimensions HxWxD (in.)
52.5x37.375x16.375
Shipping Wt (lbs)
255
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
No. of Heads
5
Factory Line-Set Charge (ft.)
125
Item #:
A-VMH48PU-1
