Home
>
Motors
>
HVAC
>
Belted Fan & Blower
> 3/4,1725,56,1/60/115/208-230
3/4,1725,56,1/60/115/208-230
No. of Poles
4
Motor Type
Capacitor Start Induction Run
Enclosure
Drip Proof
HP (Max.)
3/4
Voltage
115/208-230
Mounting
Resilient Base/Extended Studs
Speeds
1
Hz
60
Rotation
Selective CCW
RPM Range
1725
NEMA Frame Size
56
Phase
Single
Standards
UL/CSA
FLA
10.0/5.0
Bearing
Ball
Thermal Protection
Auto
Ambient Deg C
40
NOTE
Horizontal Motor Orientation
Ins. Class
B
Shaft Dia. (in.)
5/8
Capacitor Included
Yes
Shaft Length (in.)
1.88
Service Factor
1.25
Duty
Continuous
Item #:
B318

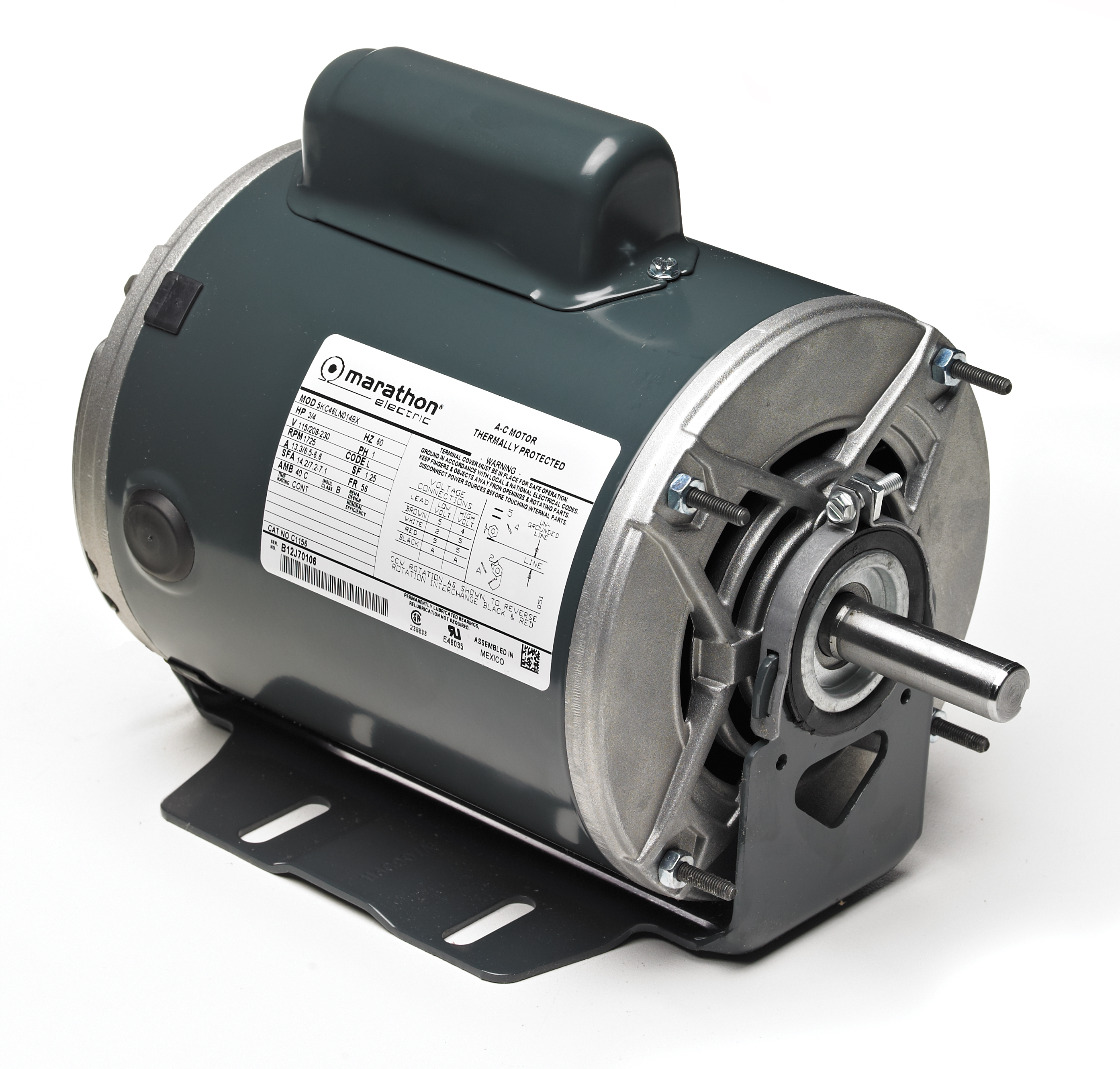

Marathon General Purpose Motor
- Capacitor Start
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
- Premium efficiency promotes improved reliability
- Heavy-duty, rolled steel construction ensures motor durability
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
