Home  >  Comfort-Aire  >  Residential A/C & Heat Pump  >  Heat Pumps  >  LE Series  >  HRG 18 P  > 2-3T TOP DISC INVERTER HP

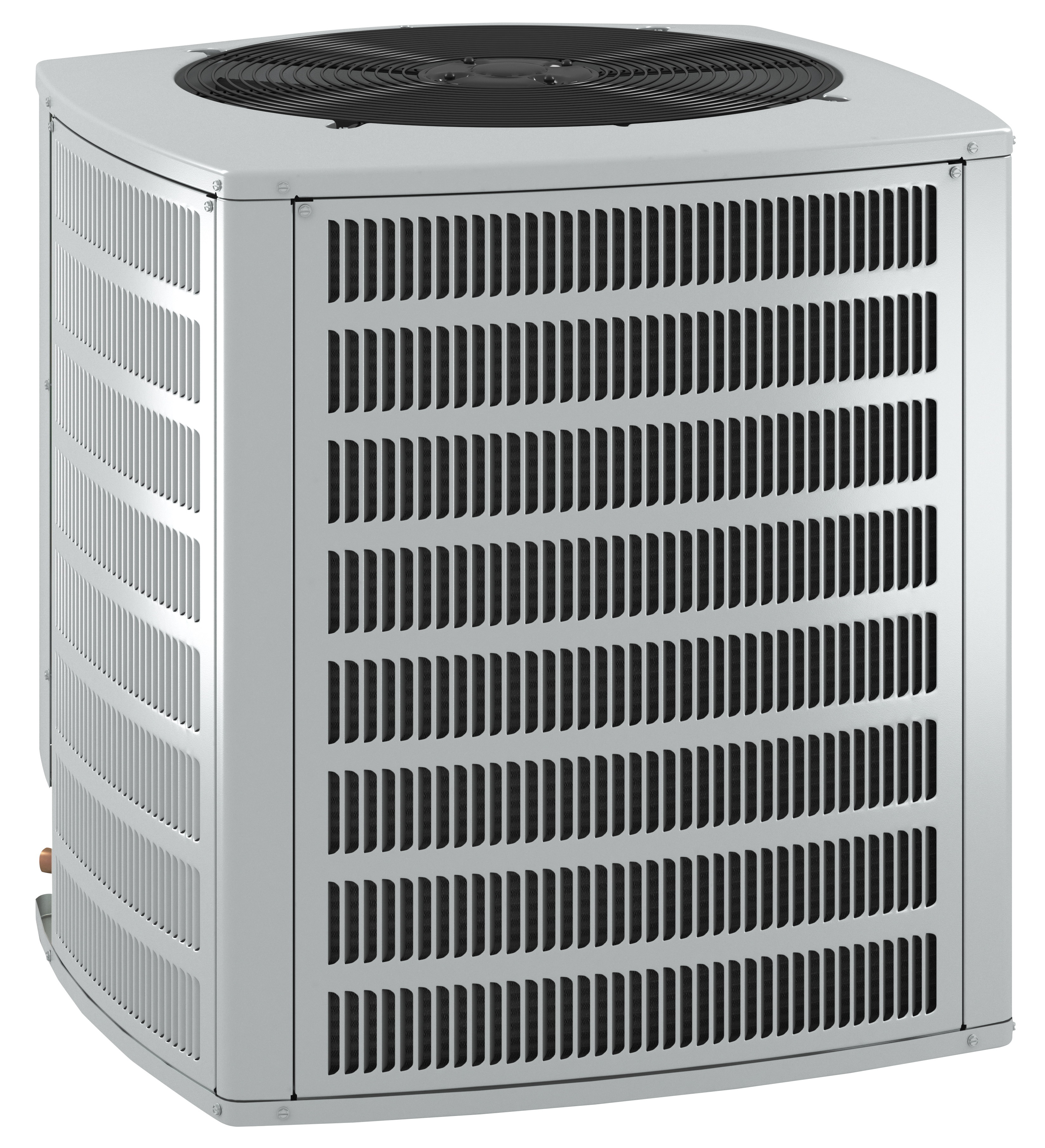

2-3T TOP DISC INVERTER HP

SPLIT 208-230-1-60
Coil Type Fin & Tube SEER (Min.) 14 Capacity (Tons) 2 - 3 Refrigerant R-410A Voltage 208/230V-1-60 Compressor Inverter No. of Stages Inverter Max. Amps 35 LRA 29.38 Width (in.) 29.38 RLA 15.3 Warranty 12 years when AHRI matched system Circuit Breaker 35 Depth (in.) 31.25 Min. Circuit Ampacity 21.9 Cabinet Galvanized steel with polyurethane finish Sound Rating (dBA) 54-64 Connection Size (in.) 3/8 - 3/4 Serviceability Easy access to electrical panels Shipping Wt (lbs) 196 Height (in.) 33.75 Matches See marsdeliversratings.com Test Listing ETL US and Canada Certification AHRI 210/240 Factory Line-Set Charge (ft.) 15
Item #: HRG1836S1P
HRG1836S1P
  • R410A Refrigerant
  • High-quality condenser coil with aluminum tubing and enhanced louvered fin for maximum heat transfer capacity
  • Top discharge directs hot air and sound away from living area and shrubbery
  • All units run tested
  • Louvered panel coil protection
  • Easy access to electrical panels, pre-wired for easy hook-up
  • Bi-directional liquid line filter drier factory installed
  • Discharge muffler for quiet operation
  • Reliable, solid state defrost control
  • Units are capable of reducing noise during defrost
  • High and Low pressure switch factory installed
  • Integrated control with LED diagnostics
  • Short cycle protection factory installed
  • All units ETL and ETLC approved and AHRI Certified
  • Charged for 15 feet of interconnecting tubing
  • Heavy-duty compressor sound blanket
    •

    Heat Pumps

    Coil Type
    Fin & Tube
    SEER (Min.)
    14
    Capacity (Tons)
    2 - 3
    Refrigerant
    R-410A
    Voltage
    208/230V-1-60
    Compressor
    Inverter
    No. of Stages
    Inverter
    Max. Amps
    35
    LRA
    29.38
    Width (in.)
    29.38
    RLA
    15.3
    Warranty
    12 years when AHRI matched system
    Circuit Breaker
    35
    Depth (in.)
    31.25
    Min. Circuit Ampacity
    21.9
    Cabinet
    Galvanized steel with polyurethane finish
    Sound Rating (dBA)
    54-64
    Connection Size (in.)
    3/8 - 3/4
    Serviceability
    Easy access to electrical panels
    Shipping Wt (lbs)
    196
    Height (in.)
    33.75
    Matches
    See marsdeliversratings.com
    Test Listing
    ETL US and Canada
    Certification
    AHRI 210/240
    Factory Line-Set Charge (ft.)
    15
