Home  >  Century  >  Residential A/C & Heat Pump  >  A/C Condensers  >  RSG 14 P  >  RSA 15  > 5 TON 60K R-410A 15 SEER

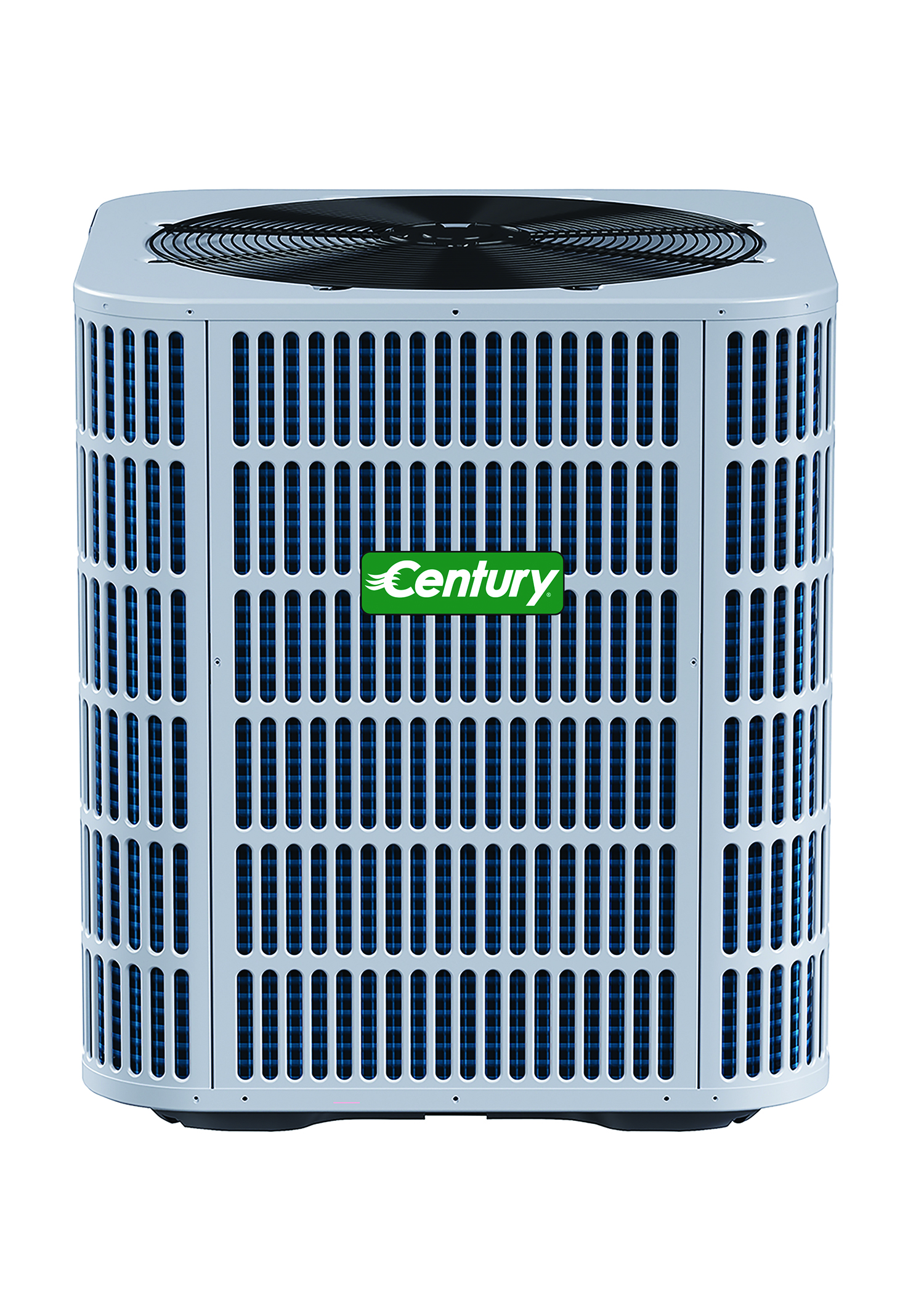

5 TON 60K R-410A 15 SEER

ALUM COIL CONDENSING UNIT
Coil Type Microchannel SEER (Min.) 15 Capacity (Tons) 5 Refrigerant R-410A Voltage 208/230V-1-60 Compressor Scroll No. of Stages 1 Max. Amps 60 LRA 127 Width (in.) 29.1 SEER2 (Min.) 14.3 RLA 26.3 Warranty 5 years Circuit Breaker 60 Depth (in.) 29.1 Min. Circuit Ampacity 35.1 Cabinet Galvanized steel with polyester finish Sound Rating (dBA) 77 Connection Size (in.) 3/8 - 11/8 Serviceability Easy access to all components for easy service Shipping Wt (lbs) 194 Height (in.) 33.2 Matches See www.ahridirectory.org Test Listing ETL US and Canada NOTE Efficiences/capacities may vary based on airflow Certification AHRI 210/240 Factory Line-Set Charge (ft.) 15
Item #: RSA1560S1A-CY
RSA1560S1A-CY
  • R410A Refrigerant
  • High-quality condenser coil with copper tubing and aluminum fin for maximum heat transfer capacity
  • Top discharge directs hot air and sound away from living area and landscaping
  • Internal protection against high temp motor overload
  • Easy access to electrical panel, pre-wired for easy hook-up
  • All units ETL and AHRI Certified
  • Charged for 15 feet of interconnecting tubing
  • Factory installed high and low pressure switch

    • Air Conditioners

    Coil Type
    Microchannel
    SEER (Min.)
    15
    Capacity (Tons)
    5
    Refrigerant
    R-410A
    Voltage
    208/230V-1-60
    Compressor
    Scroll
    No. of Stages
    1
    Max. Amps
    60
    LRA
    127
    Width (in.)
    29.1
    SEER2 (Min.)
    14.3
    RLA
    26.3
    Warranty
    5 years
    Circuit Breaker
    60
    Depth (in.)
    29.1
    Min. Circuit Ampacity
    35.1
    Cabinet
    Galvanized steel with polyester finish
    Sound Rating (dBA)
    77
    Connection Size (in.)
    3/8 - 11/8
    Serviceability
    Easy access to all components for easy service
    Shipping Wt (lbs)
    194
    Height (in.)
    33.2
    Matches
    See www.ahridirectory.org
    Test Listing
    ETL US and Canada
    NOTE
    Efficiences/capacities may vary based on airflow
    Certification
    AHRI 210/240
    Factory Line-Set Charge (ft.)
    15
