Home  >  Comfort-Aire  >  Residential A/C & Heat Pump  >  Packaged Units  >  Ultra Low NOx  > 5T 14 SEER GAS/ELEC 72K HT

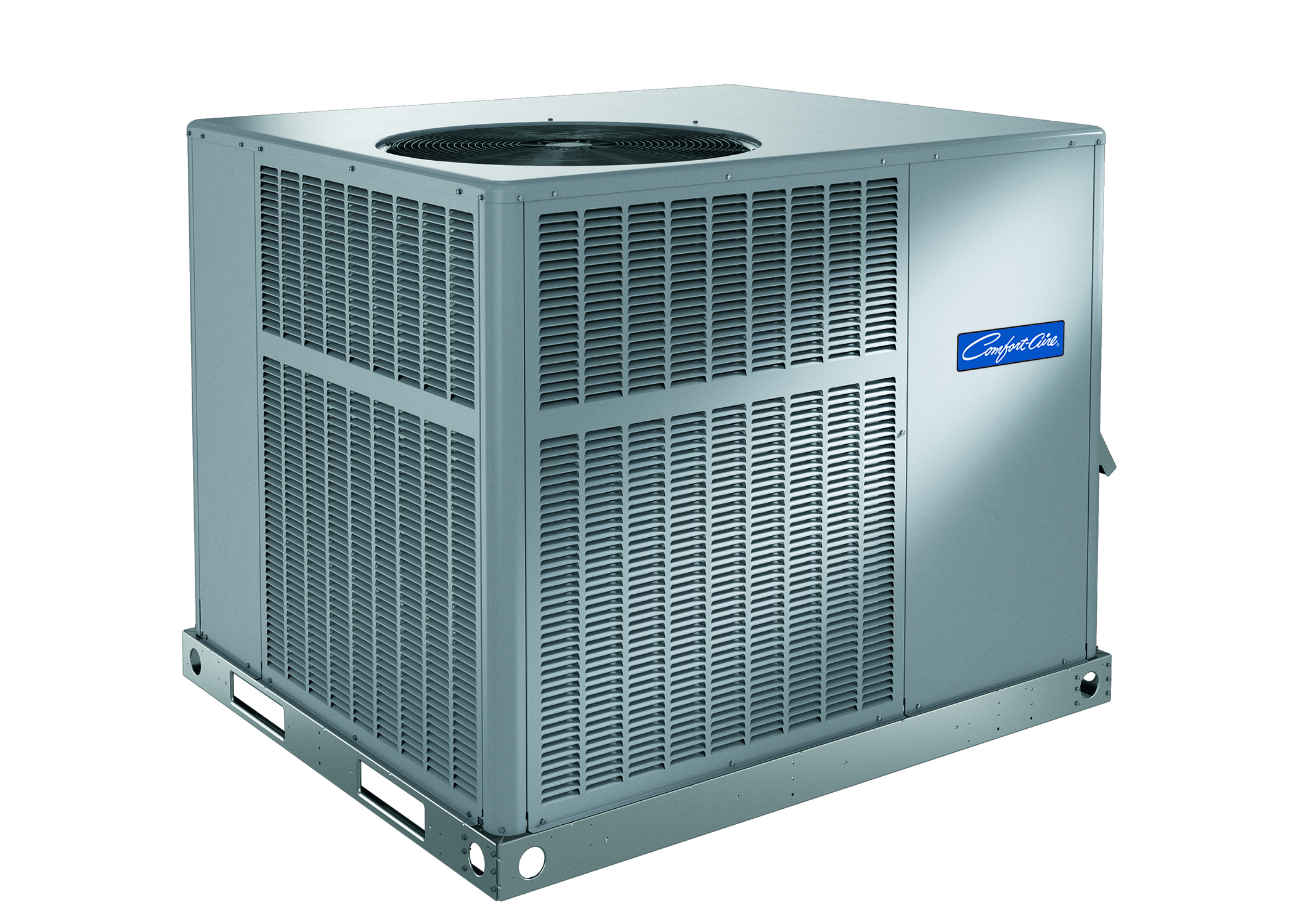

5T 14 SEER GAS/ELEC 72K HT

ULTRA LOW NOx ECM RESPAK
SEER 14 Input BTUH 72,000 Capacity (Tons) 5 Heating Efficiency 0.81 Refrigerant R-410A EER 11 Voltage 208/230V-1-60 SEER/EER 14/11 Compressor Scroll Indoor & Outdoor Coils Copper Tubing with Enhanced Fins Warranty See Warranty Documents Output BTUH 58,400 Blower Motor ECM Constant Torque Dimensions HxWxD (in.) 44.89x47.66x56.13 Serviceability Superior service access to components Shipping Wt (lbs) 557 Matches See marsdeliversratings.com Test Listing ETL US and Canada NOTE Efficiencies/capacities may vary based on air flow Certification AHRI 210/240 Rated Cap. Btuh (SEER/SEER2) 57,000/57,500 Rated Sensible Cap. Btuh SEER/SEER2 41,600/41/900 SEER2/EER2 13.4/10.6 Temp Rise Range F 25-55
Item #: TGRX60721R
TGRX60721R
  • Environmentally friendly R410A refrigerant
  • Copper tubing with enhanced fin coils
  • Internal service gauge ports
  • Stainless steel dimple tubular heat exchanger for increased efficiency
  • Pest protected flue outlet
  • Rounded corners for safety and an attractive, clean appearance
  • One piece base design for strength and stability
  • Condensate and coil runoff drains to the perimeter of unit
  • Low profile, with compact footprint
  • Insulation to minimize heat loss plus reduce sound
  • Textured pre-painted steel cabinet finish
  • Superior service access to components
  • One piece "no leak" top design
  • Insulated compartment to reduce sound
  • Efficient constant torque motor for wide airflow range
  • Slide out blower housing for easy service
  • Solid state integrated blower control board with L.E.D. self diagnostics
  • Direct spark ignition
  • Color coded wiring for easy service
  • Horizontal or down discharge capable
  • Utility connections on "right side"
  • Models comply with California Energy Commission Ultra Low NOx regulations
  • Horizontal and downflow duct openings are flanged to minimize water entry
  • Color coded wiring for easy service
  • Sleeved distributor tubes
  • Antimicrobial insulated drain pan

    • Packaged Units

    SEER
    14
    Input BTUH
    72,000
    Capacity (Tons)
    5
    Heating Efficiency
    0.81
    Refrigerant
    R-410A
    EER
    11
    Voltage
    208/230V-1-60
    SEER/EER
    14/11
    Compressor
    Scroll
    Indoor & Outdoor Coils
    Copper Tubing with Enhanced Fins
    Warranty
    See Warranty Documents
    Output BTUH
    58,400
    Blower Motor
    ECM Constant Torque
    Dimensions HxWxD (in.)
    44.89x47.66x56.13
    Serviceability
    Superior service access to components
    Shipping Wt (lbs)
    557
    Matches
    See marsdeliversratings.com
    Test Listing
    ETL US and Canada
    NOTE
    Efficiencies/capacities may vary based on air flow
    Certification
    AHRI 210/240
    Rated Cap. Btuh (SEER/SEER2)
    57,000/57,500
    Rated Sensible Cap. Btuh SEER/SEER2
    41,600/41/900
    SEER2/EER2
    13.4/10.6
    Temp Rise Range F
    25-55
