Home  >  Comfort-Aire  >  Ductless Mini-Splits  >  Single Zone  >  VMH  >  Outdoor Unit  > 24K 208/230V HP ULTRA LOW OUTD

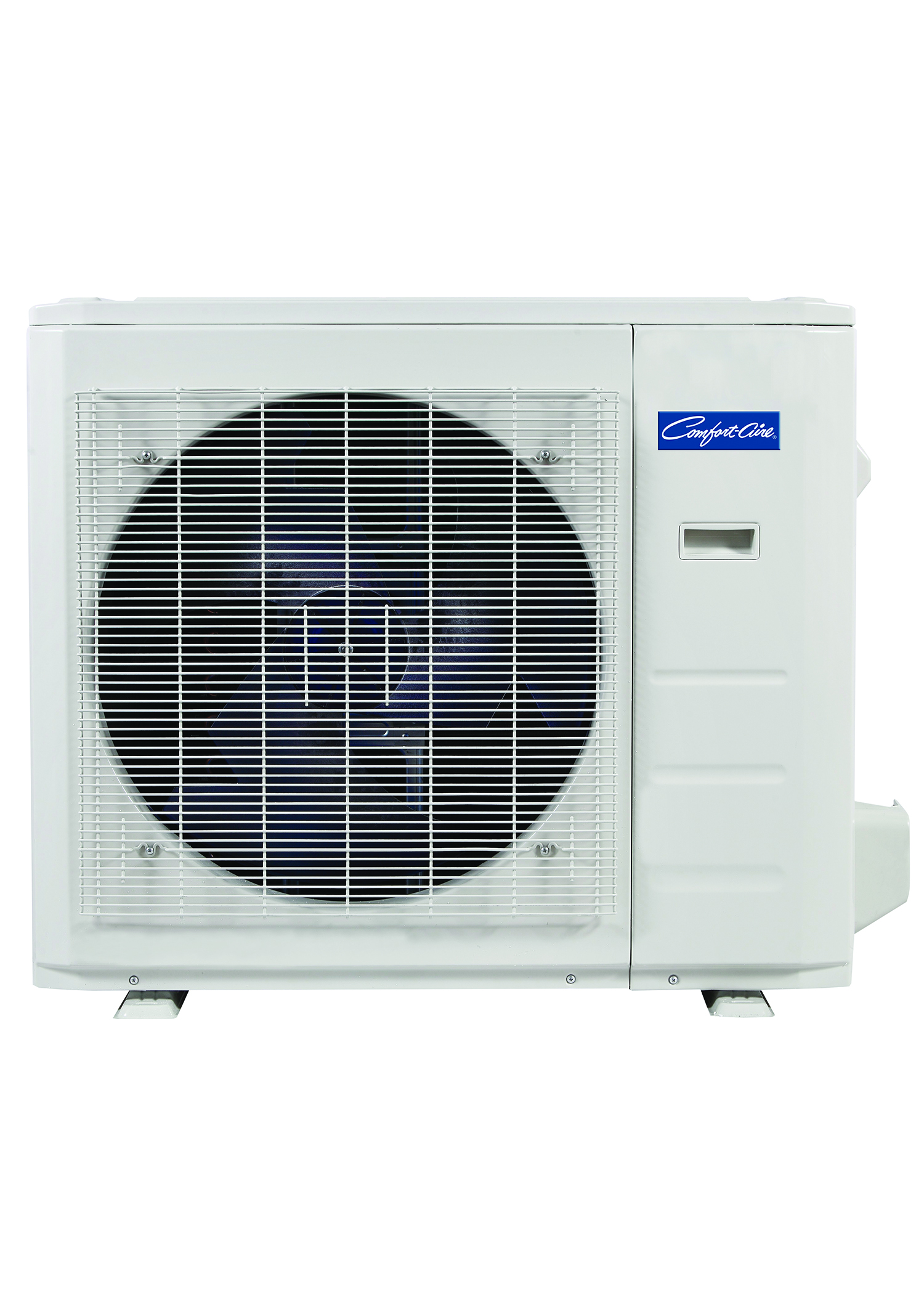

24K 208/230V HP ULTRA LOW OUTD

SINGLE ZONE HYPER HEAT
Detail 24K 208/230V Single Zone Heat Pump Refrigerant R410A EER 10.30 Conductor AWG 14G 4 Wire Stranded Voltage 208/230V-1-60 SEER/HSPF 20.00/12.50 Cooling Capacity BTUH 24,000 Fuse Amps 35 Inverter Technology Yes Heating Capacity BTUH 24,000 Wireless Remote Yes Low Ambient Operation -22°F Operating Temperature -22° to 122°F cooling, -22° to 86°F heating Warranty 10 years on compressor, 10 year on parts Auto Restart Yes Modes Cooling, heating, dehumidification, fan only Min. Circuit Ampacity 25 Dimensions HxWxD (in.) 31.875x37.25x16.125 Shipping Wt (lbs) 134.48 Test Listing ETL US and Canada NOTE Smart Phone Capable Certification AHRI (complete system) SEER2/EER2 21.5/13 No. of Heads 1 Factory Line-Set Charge (ft.) 25 HSPF2 11.4
Item #: A-VMH24SV-1
A-VMH24SV-1
  • High efficiency HyperV outdoor unit operates down to -22°F ambient temperature
  • Inverter technology matches compressor speed to load demand, saving an estimated 40% or more on energy consumption over non-inverter models
  • Units are rated as high as 28.5 SEER
    •

    Single Zone

    Detail
    24K 208/230V Single Zone Heat Pump
    Refrigerant
    R410A
    EER
    10.30
    Conductor AWG
    14G 4 Wire Stranded
    Voltage
    208/230V-1-60
    SEER/HSPF
    20.00/12.50
    Cooling Capacity BTUH
    24,000
    Fuse Amps
    35
    Inverter Technology
    Yes
    Heating Capacity BTUH
    24,000
    Wireless Remote
    Yes
    Low Ambient Operation
    -22°F
    Operating Temperature
    -22° to 122°F cooling, -22° to 86°F heating
    Warranty
    10 years on compressor, 10 year on parts
    Auto Restart
    Yes
    Modes
    Cooling, heating, dehumidification, fan only
    Min. Circuit Ampacity
    25
    Dimensions HxWxD (in.)
    31.875x37.25x16.125
    Shipping Wt (lbs)
    134.48
    Test Listing
    ETL US and Canada
    NOTE
    Smart Phone Capable
    Certification
    AHRI (complete system)
    SEER2/EER2
    21.5/13
    No. of Heads
    1
    Factory Line-Set Charge (ft.)
    25
    HSPF2
    11.4
